Data Grid New

The advanced datagrid component allows you to display and interact with structured data in a tabular format. Built on the AG Grid framework, it offers high-performance rendering with advanced features like sorting, filtering, pagination, and cell editing. You can fully customize its appearance and behavior to meet your specific requirements.

Features

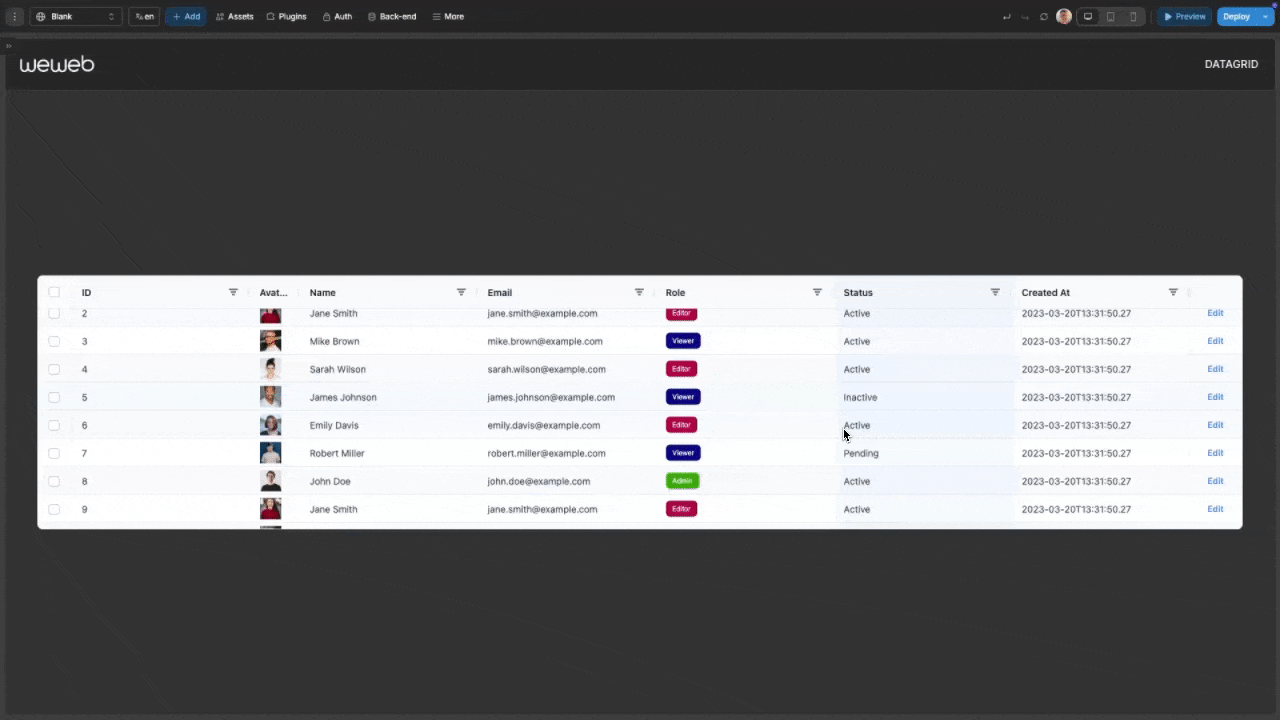

High-Performance Rendering: Efficiently handles large datasets with virtual scrolling
Advanced Sorting & Filtering: Helps users quickly find and organize data
Row Selection: Single or multiple row selection with full event handling
Interactive Cell Editing: Edit data directly within the grid with validation
Custom Cells: Add your own UI components to grid cells
Pagination: Traditional page-based navigation for structured data review
Column Management: Resize, reorder, and pin columns as needed
Comprehensive Styling: Extensive appearance customization for all grid elements

Getting started

Using AI

The quickest way to set up the datagrid is by using AI.

First, ensure you have a variable or collection with your data ready.
Ask AI: "Create a datagrid that uses {{insert your data}}". Make sure you pass in your data as context in the chat.

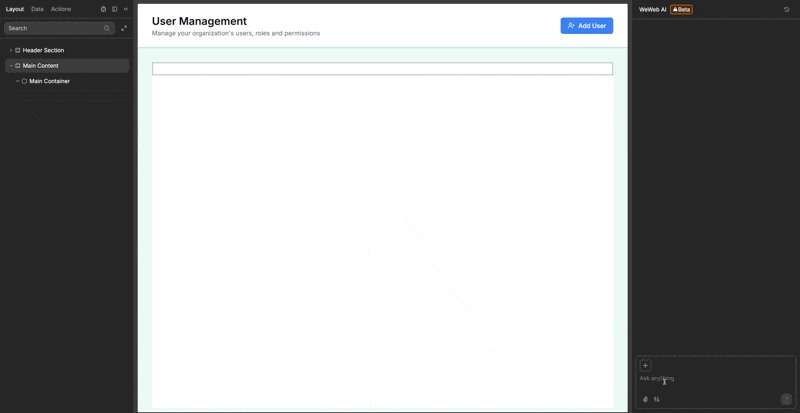

Setting up a datagrid with AI

Continue refining and customizing your datagrid by asking AI for specific modifications:

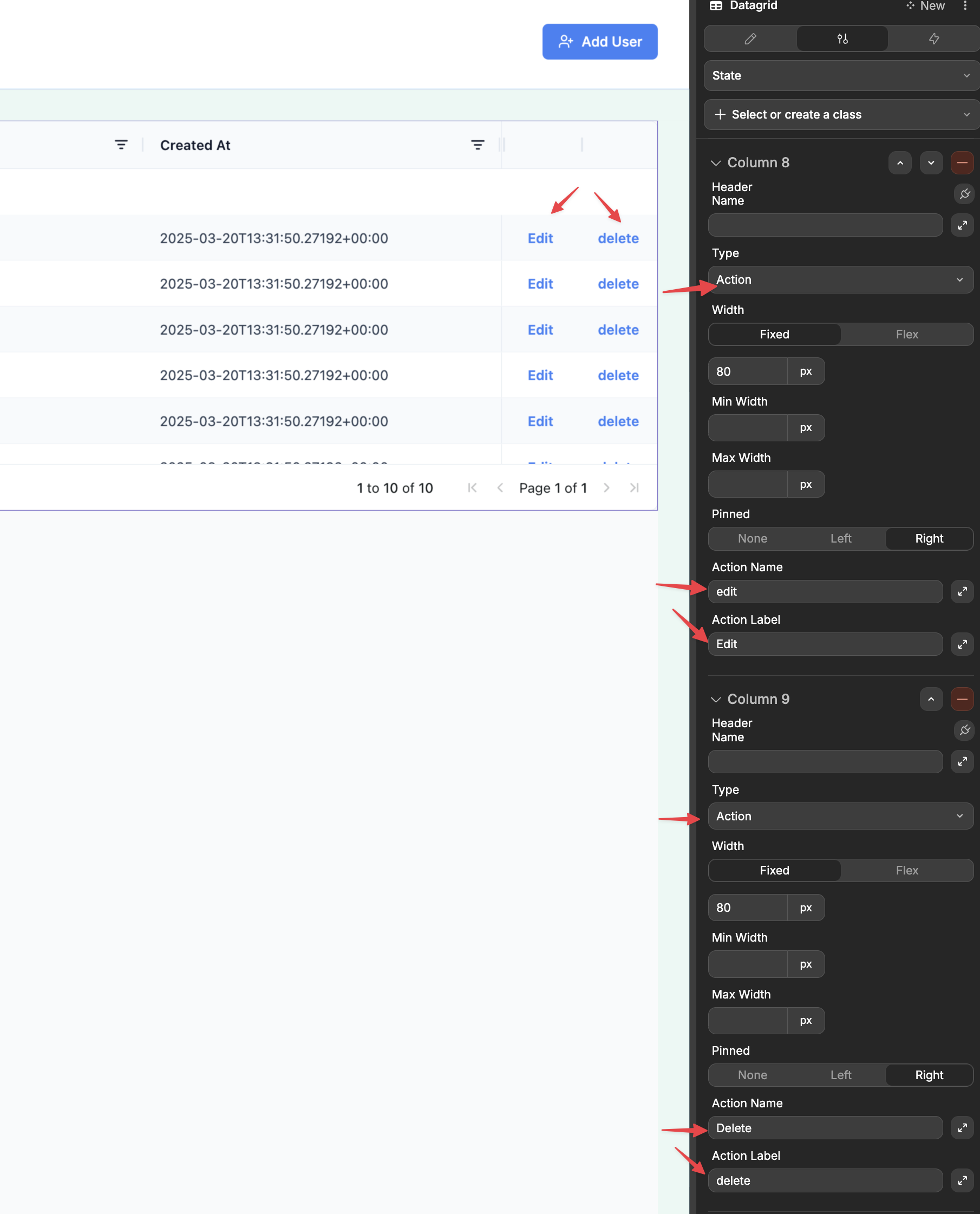

- "Add an action column with an 'Edit' button"

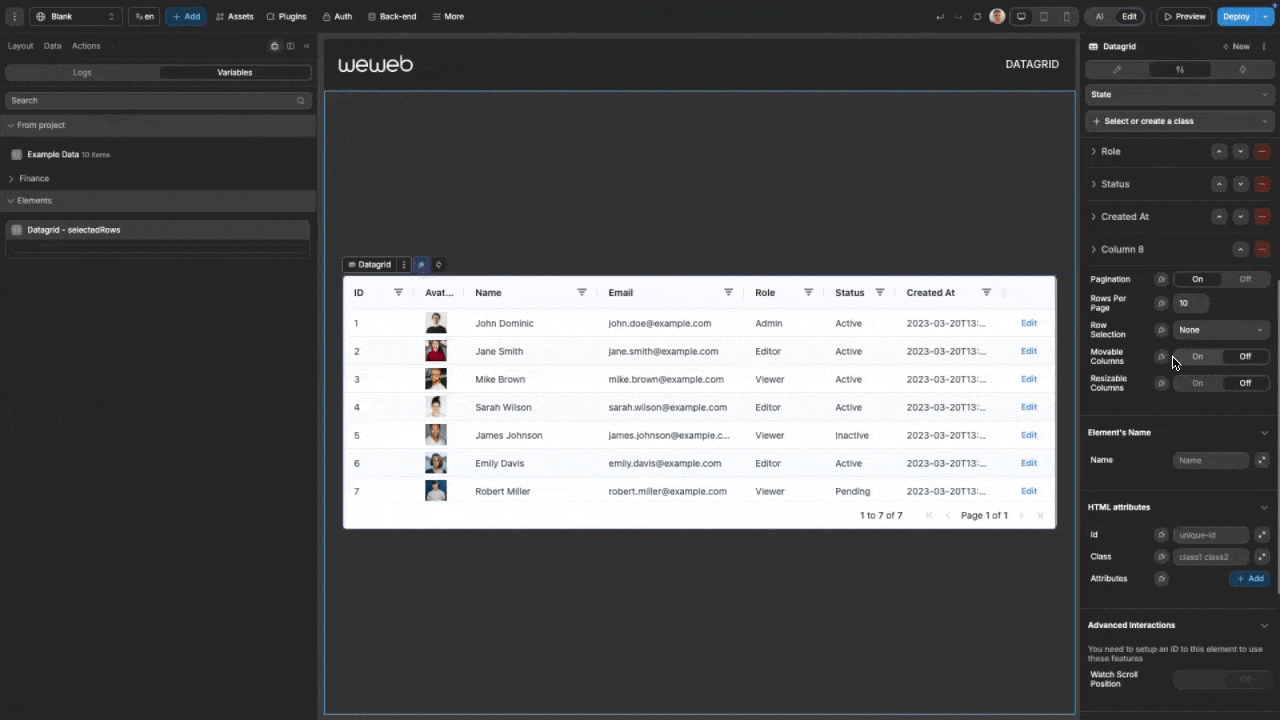

- "Enable multiple row selection on the datagrid"
- "Make the email column wider and show the status column with color indicators"

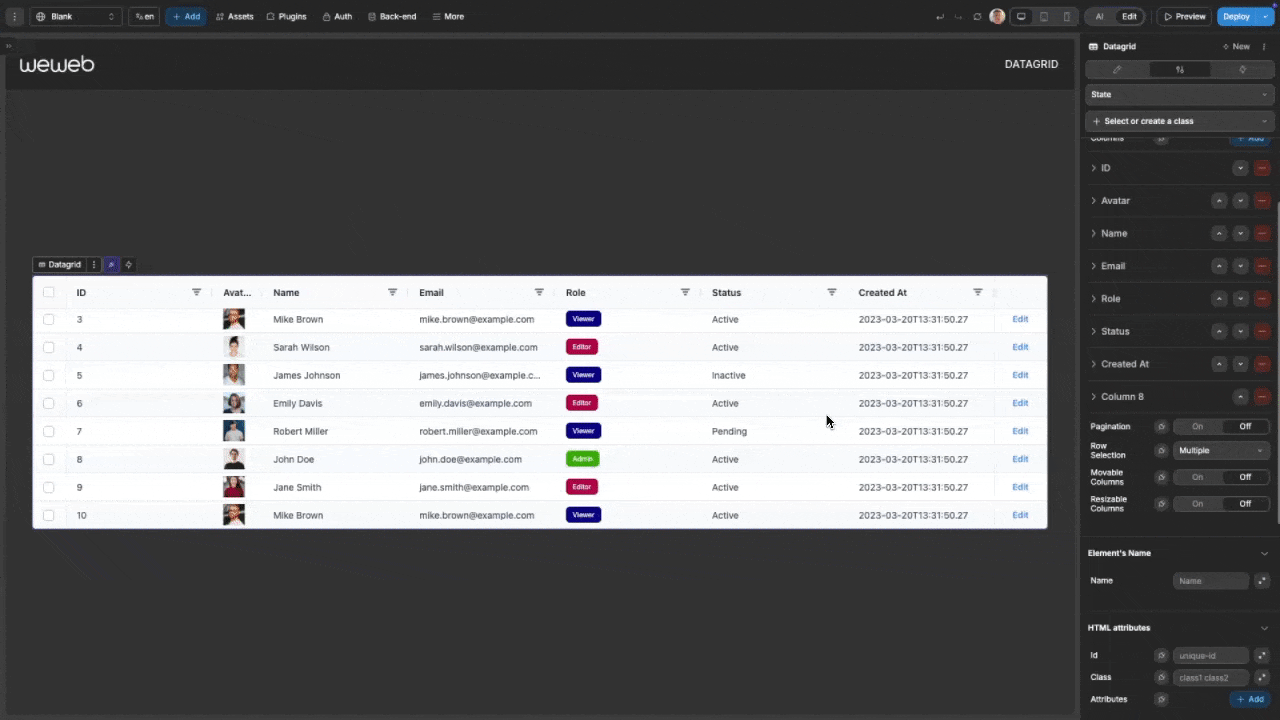

- "Add pagination showing 5 rows per page"

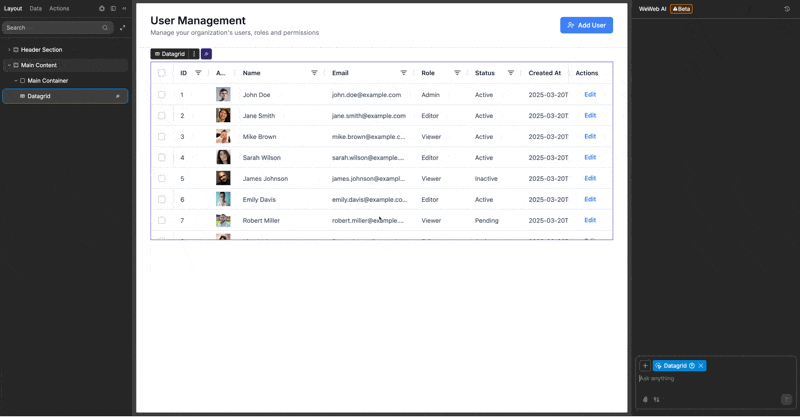

Update a datagrid with AI

Manual setup

Add the datagrid to your page from the Add panel
Configure the data source:
- Click the Data property and select a variable or collection
- Set a unique row ID formula (typically using the primary key of your data)
- Click Generate Columns to create columns based on your data structure

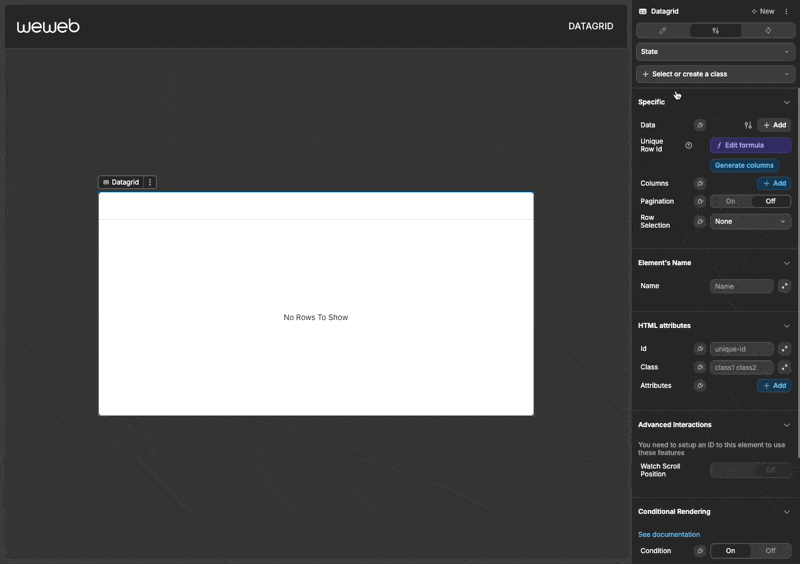

Binding data to datagrid

Customize columns as needed through the properties panel
Configure appearance settings in the Style panel

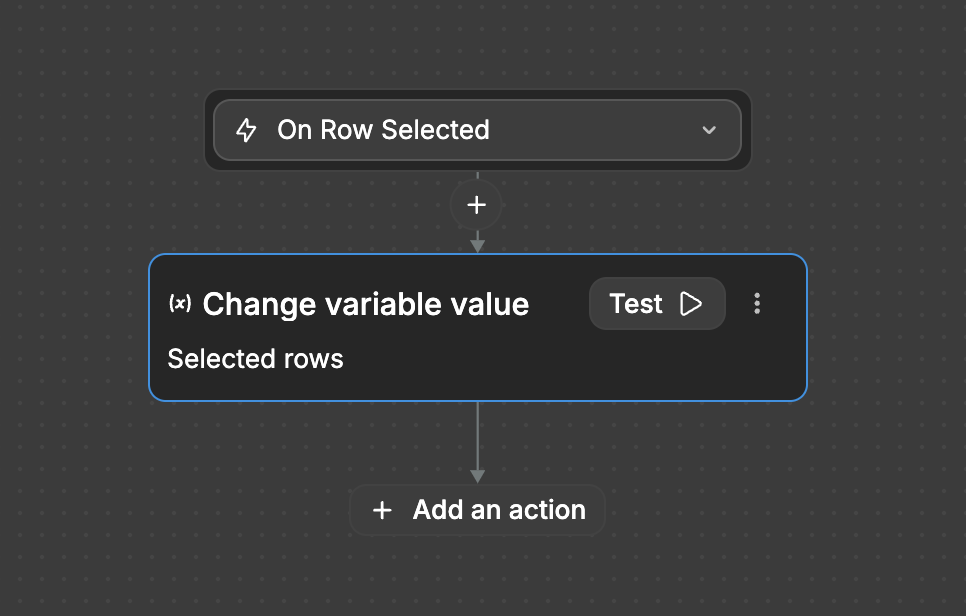

Add workflows to handle interactions like row selection or action buttons

TIP

When binding data to the datagrid, it is optimal for your data to be an array of objects, as this will allow the automatic generation of columns.

If you are unsure what an 'array of objects' means, please refer to our guide on understanding variables: Variables Guide.

Column configuration

The datagrid organizes your data into columns that can be extensively customized.

Column types

Type	Best For
Text	String data
Number	Numeric values
Boolean	True/false values
Date	Date strings
Image	Image URLs
Action	Interactive buttons
Custom	Complex elements

Custom display formatting

For Text, Number, Boolean, and Date columns, you can customize how values are displayed without changing the underlying data:

Select a column in the properties panel
Toggle on Custom display value
Create a formula that transforms the raw value into your desired format

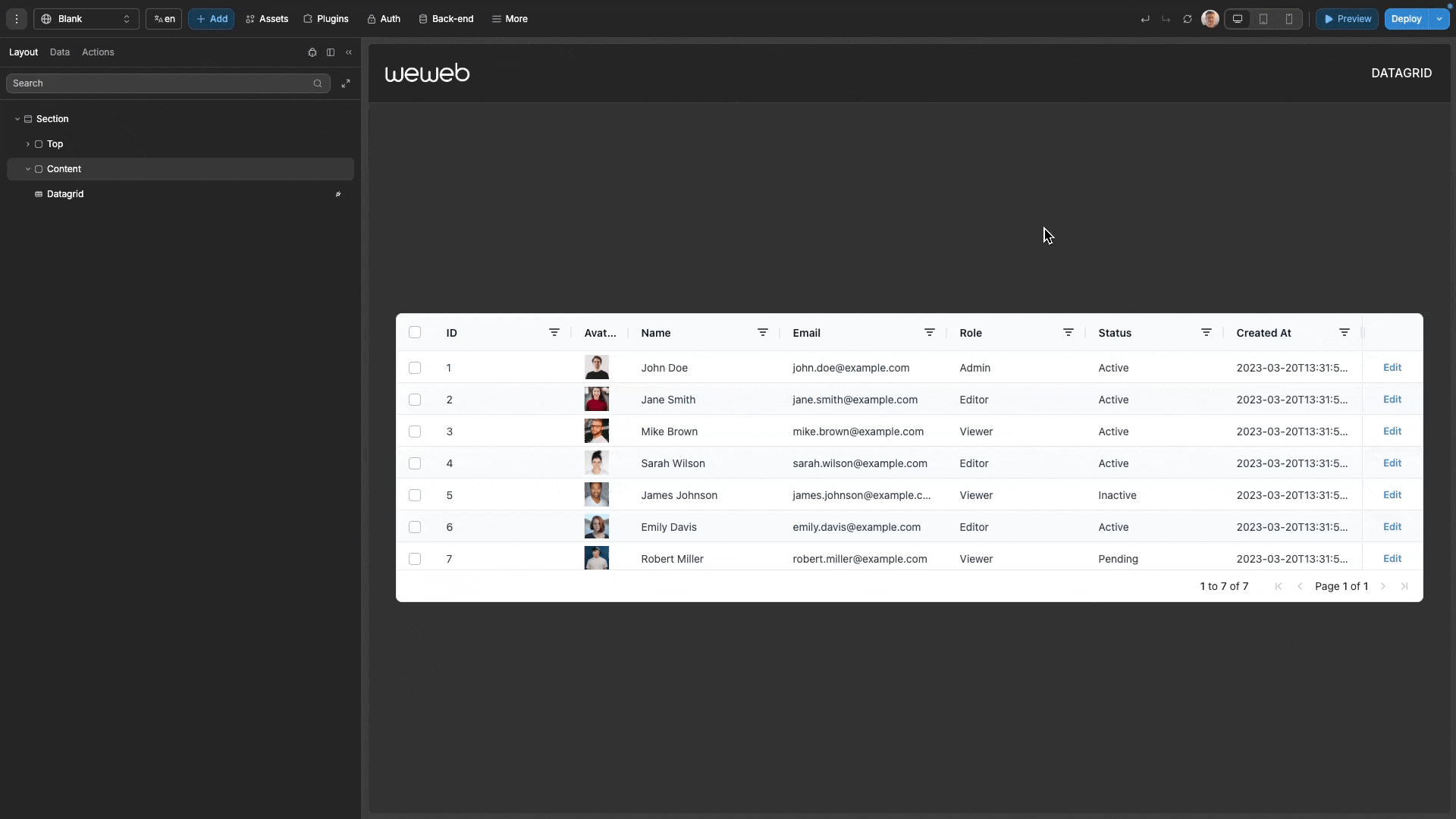

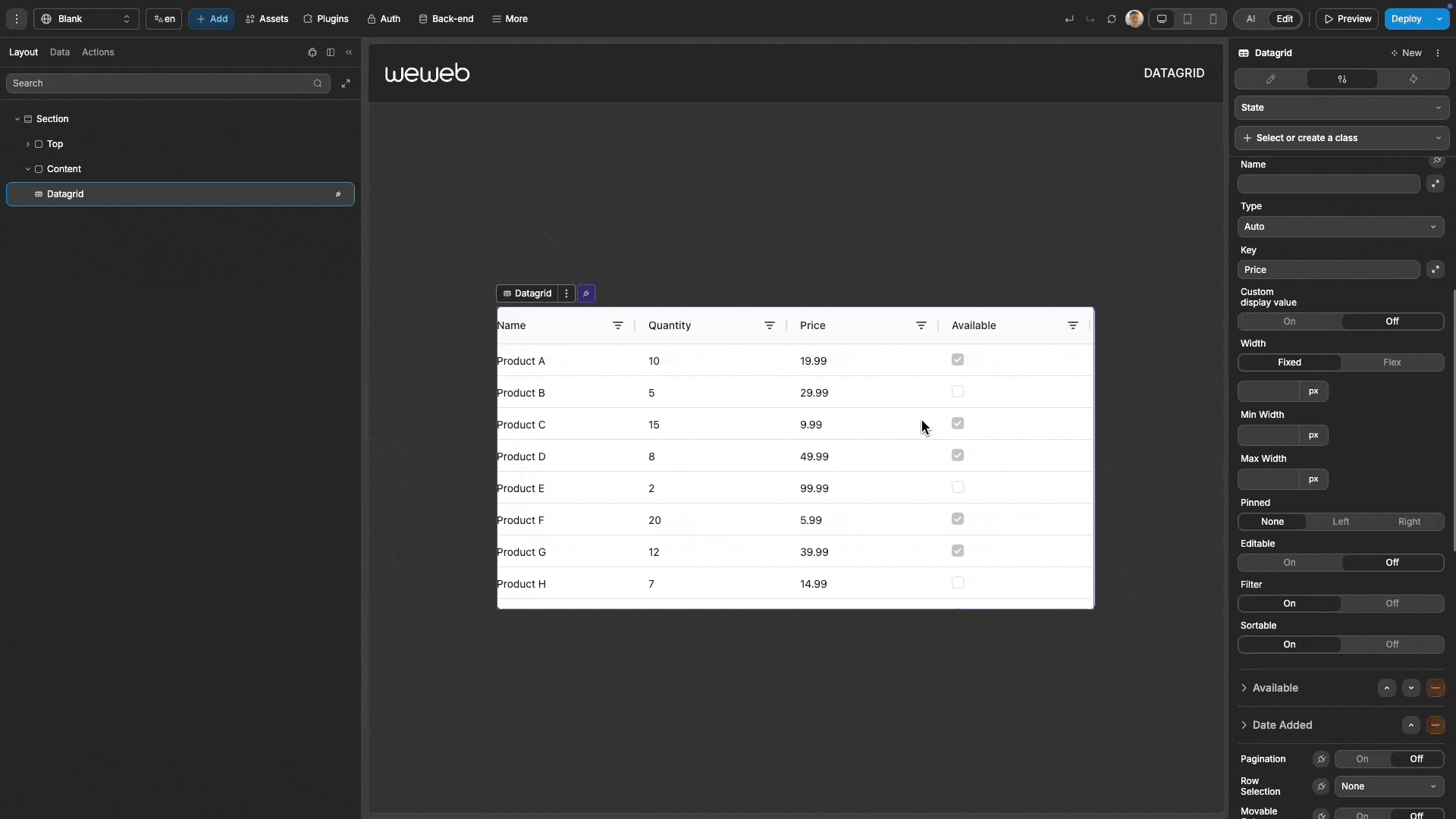

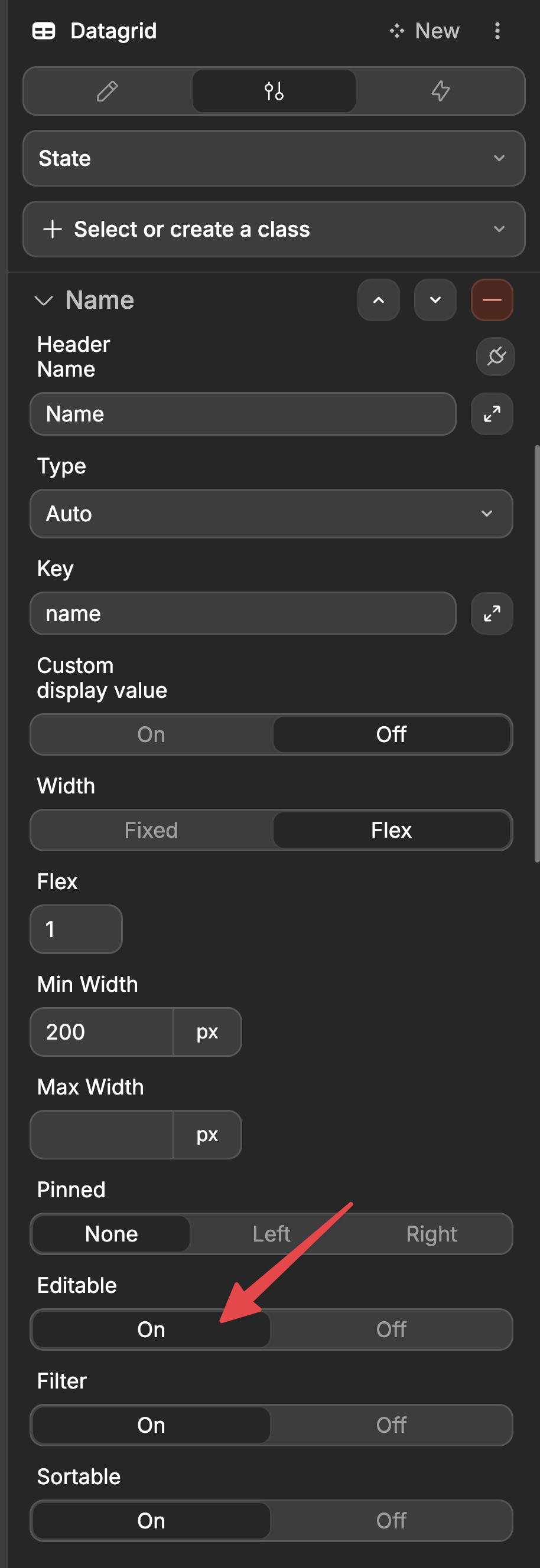

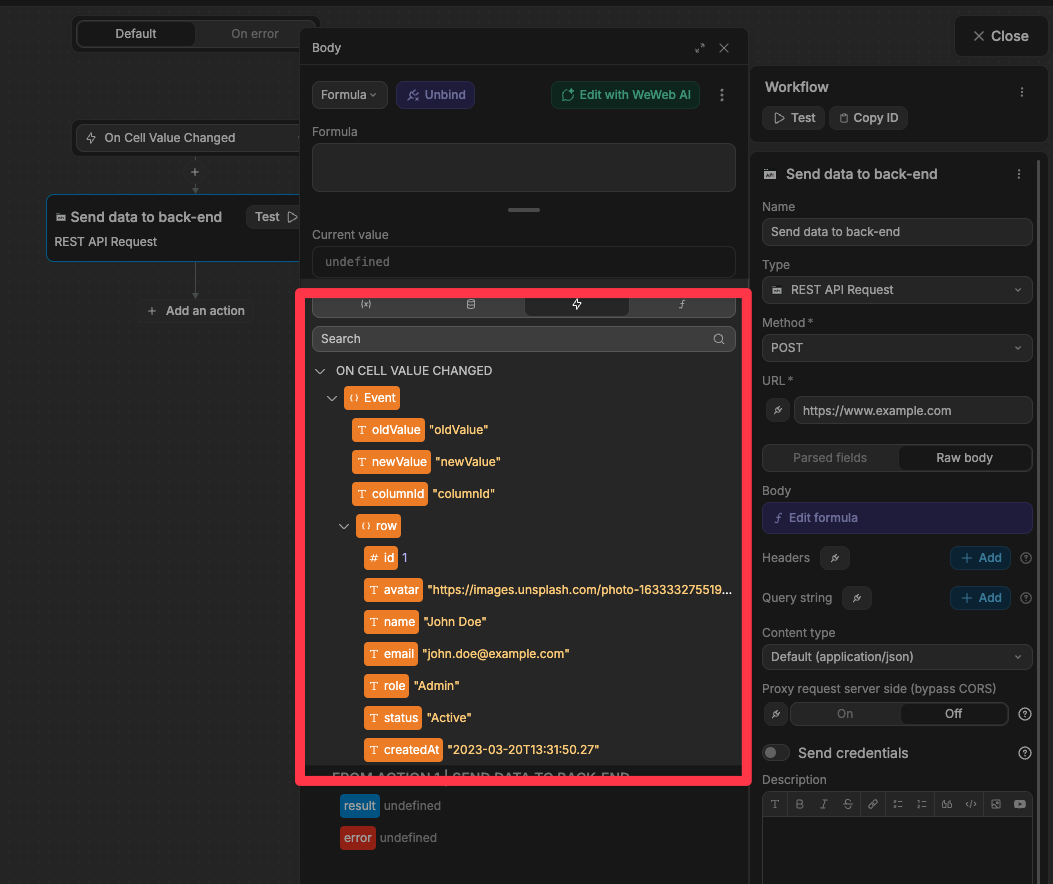

Edit cell value

Dynamic column definition

For programmatically defining columns, bind the columns property to a variable with this structure:

javascript

[
    {
        "headerName": "Name",
        "cellDataType": "text",
        "field": "name",
        "width": "200px",
        "sortable": true
    },
    {
        "headerName": "Price",
        "cellDataType": "number",
        "field": "price",
        "width": "100px",
        "sortable": true
    },
    {
        "headerName": "In Stock",
        "cellDataType": "boolean",
        "field": "inStock",
        "width": "100px"
    },
    {
        "headerName": "Product Image",
        "cellDataType": "image",
        "field": "thumbnail",
        "imageWidth": "50px",
        "imageHeight": "50px"
    },
    {
        "headerName": "Actions",
        "cellDataType": "action",
        "field": "edit",
        "actionName": "editRow",
        "actionLabel": "Edit"
    }
]

WARNING

When using dynamic column definitions, you cannot define a column of type "custom". This is a technical limitation that we aim to address in a future update.

Column pinning

For tables with many columns, pin important columns to ensure they stay visible:

Set the Pinned property to either Left or Right
Pinned columns remain fixed while users scroll horizontally
Useful for ID columns, status indicators, or action buttons

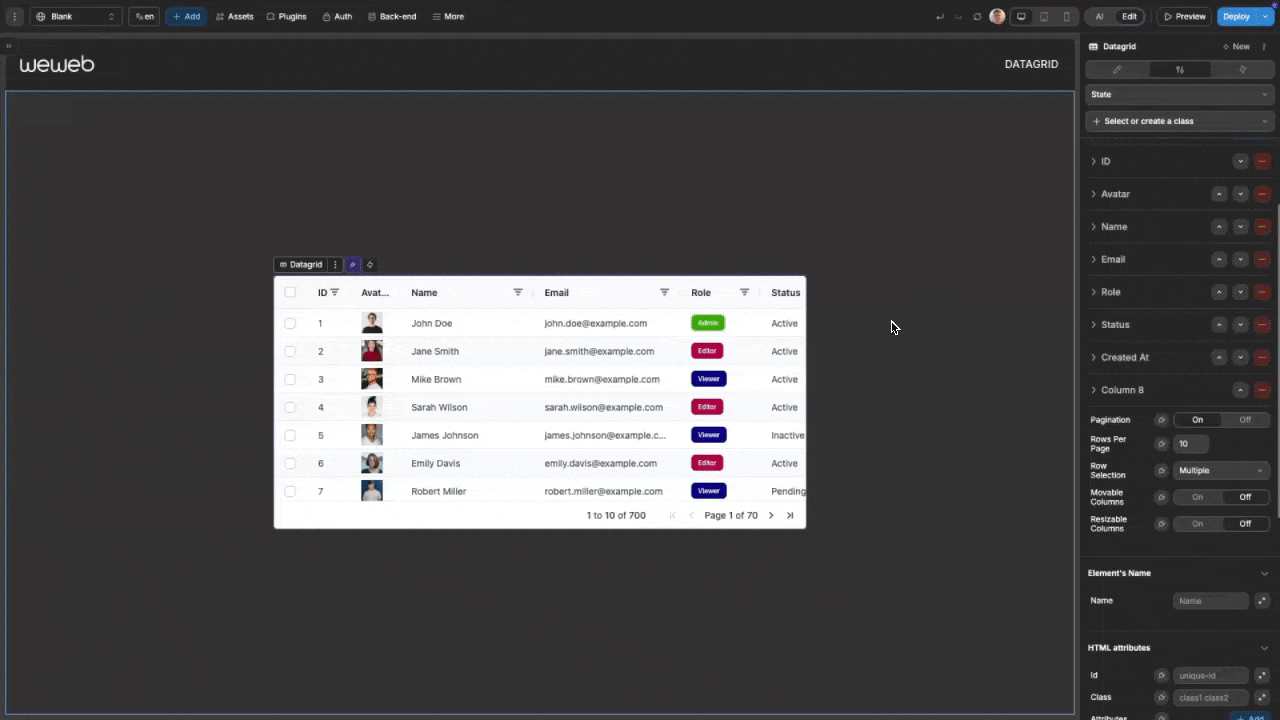

Pinning Column

Column Width Strategies

The datagrid offers two approaches to handling column widths:

Fixed Width: Set a specific pixel width for the column
- Good for consistent layouts
- Best for columns with predictable content length
Flex Width: Distribute available space proportionally
- Adapts to different screen sizes
- Set flex values to control relative proportions

Dynamic column visibility

You can dynamically show or hide columns based on various conditions without removing them from the grid definition:

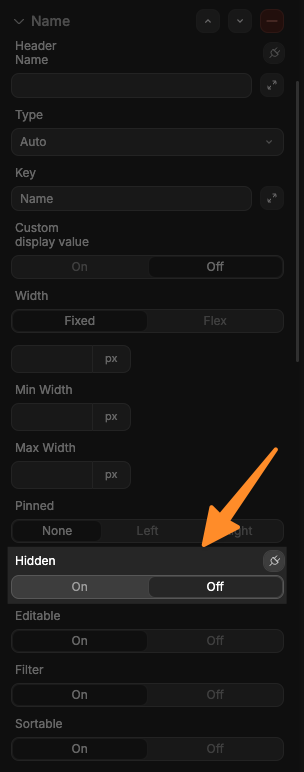

For each column, find the Hidden property in the column settings
You can either:
- Set it to On to permanently hide the column
- Bind it to a variable to dynamically control visibility

This allows for powerful use cases, such as:

Creating responsive layouts that adapt to different screen sizes
Allowing users to customize their view by toggling which columns they want to see

Building a column visibility controller

Here's a complete example of how to implement user-controlled column visibility:

Create a visibility state variable:
- create a variable named columnVisibility with the type object
- set its default value to be an object containing the columns in your datagrid with either a true or false value:
  javascript
```
{
  "name": true,
  "email": true,
  "phone": true,
  "address": false,
  "joinDate": false
}
```
- (optional) select Yes for the Save in local storage option if you want to save the user's selected column visibility options between app sessions
Bind column visibility:
- For each column in your datagrid, bind its Hidden property to its respective field in the columnVisibility variable:
  - For the "name" column: columnVisibility.name
  - For the "email" column: columnVisibility.email
  - And so on for each column
Create toggle controls:
- Add a container above or beside your datagrid
- Add toggle switches (or checkboxes) for each column
- Bind each toggle's Init Value to the value to the corresponding property in your columnVisibility variable
- Example: For the "name" column toggle, bind to columnVisibility.name
- Add an On change workflow to each toggle that updates the corresponding field in columnVisibility

Filter configuration

The datagrid offers powerful filtering capabilities that can be further customized to support different languages and filtering conditions.

Initial filters

You can set up filters that will be applied when the datagrid first loads:

In the datagrid settings properties, locate the Initial Filters setting

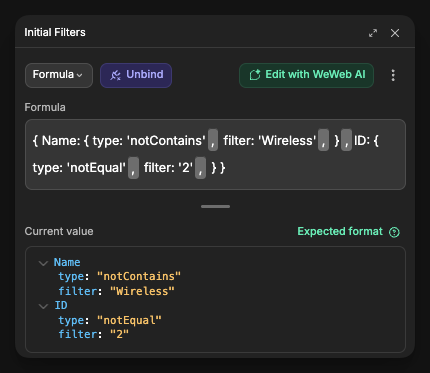

Initial Filters Setting

Input an object that defines which columns to filter and how

Initial Filters Setting

The filter object structure depends on the column type and whether you're using a single condition or multiple conditions:

Single condition filter

javascript

{
  "ColumnName": {
    "type": "contains",   // filter operation to apply
    "filter": "value"     // value to filter by
  }
}

Multiple conditions filter

For more complex filtering scenarios, you can combine multiple filter conditions on a single column using the operator and conditions structure:

javascript

{
  "ColumnName": {
    "operator": "AND",    // "AND" or "OR"
    "conditions": [
      {
        "filterType": "text",  // specify the filter type for each condition
        "type": "contains",
        "filter": "value1"
      },
      {
        "filterType": "text",
        "type": "notEqual",
        "filter": "value2"
      }
    ]
  }
}

Important notes for multiple conditions:

The operator field determines how conditions are combined:
- "AND": All conditions must be true
- "OR": At least one condition must be true
You can combine any number of conditions for the same column

Available filter types by column type

Text Columns

Type	Description
contains	Matches cells containing the text
notContains	Matches cells not containing the text
equals	Matches cells exactly matching the text
notEqual	Matches cells not matching the text
startsWith	Matches cells starting with the text
endsWith	Matches cells ending with the text
blank	Matches empty cells
notBlank	Matches non-empty cells

Number Columns

Type	Description
equals	Matches cells equal to the number
notEqual	Matches cells not equal to the number
greaterThan	Matches cells greater than the number
greaterThanOrEqual	Matches cells greater than or equal to the number
lessThan	Matches cells less than the number
lessThanOrEqual	Matches cells less than or equal to the number
inRange	Matches cells in a range (requires filter and filterTo)
blank	Matches empty cells
notBlank	Matches non-empty cells

Date Columns

Type	Description
equals	Matches cells with date equal to given date
notEqual	Matches cells with date not equal to given date
greaterThan	Matches cells with date after given date
greaterThanOrEqual	Matches cells with date on or after given date
lessThan	Matches cells with date before given date
lessThanOrEqual	Matches cells with date on or before given date
inRange	Matches cells with date in a range (requires filter and filterTo)
blank	Matches empty cells
notBlank	Matches non-empty cells

Example filter configurations

Text filter:

javascript

{
  "Name": {
    "filterType": "text",
    "type": "notContains",
    "filter": "Wireless"
  }
}

Number filter:

javascript

{
  "Price": {
    "filterType": "number",
      "type": "greaterThan",
      "filter": 50
    }
}

Date filter:

javascript

{
  "CreatedAt": {
    "filterType": "date",
    "type": "inRange",
    "dateFrom": "2023-01-01",
    "dateTo": "2023-12-31"
  }
}

Filtering multiple columns:

javascript

{
  "Category": {
    "filterType": "text",
    "type": "equals",
    "filter": "Electronics"
  },
  "Price": {
    "filterType": "number",
    "type": "greaterThan",
    "filter": 50
    },
  "Name": {
    "filterType": "text",
    "type": "contains",
    "filter": "Wireless"
  }
}

Multiple conditions examples

Number range filter (e.g., price between 50 and 70):

javascript

{
  "Price": {
    "operator": "AND",
    "conditions": [
      {
        "filterType": "number",
        "type": "greaterThan",
        "filter": 50
      },
      {
        "filterType": "number",
        "type": "lessThan",
        "filter": 70
      }
    ]
  }
}

Text multiple conditions (e.g., contains "Wireless" OR contains "Bluetooth"):

javascript

{
  "Name": {
    "operator": "OR",
    "conditions": [
      {
        "filterType": "text",
        "type": "contains",
        "filter": "Wireless"
      },
      {
        "filterType": "text",
        "type": "contains",
        "filter": "Bluetooth"
      }
    ]
  }
}

Date multiple conditions (e.g., before 2024-01-01 OR after 2024-12-31):

javascript

{
  "CreatedAt": {
    "operator": "OR",
    "conditions": [
      {
        "filterType": "date",
        "type": "lessThan",
        "dateFrom": "2024-01-01"
      },
      {
        "filterType": "date",
        "type": "greaterThan",
        "dateFrom": "2024-12-31"
      }
    ]
  }
}

Complex example combining single and multiple condition filters:

javascript

{
  "Category": {
    "filterType": "text",
    "type": "equals",
    "filter": "Electronics"
  },
  "Price": {
    "operator": "AND",
    "conditions": [
      {
        "filterType": "number",
        "type": "greaterThan",
        "filter": 50
      },
      {
        "filterType": "number",
        "type": "lessThan",
        "filter": 200
      }
    ]
  },
  "Name": {
    "operator": "OR",
    "conditions": [
      {
        "filterType": "text",
        "type": "contains",
        "filter": "Pro"
      },
      {
        "filterType": "text",
        "type": "contains",
        "filter": "Premium"
      }
    ]
  }
}

Language selection

You can configure the language used in filter dropdown menus and filter option text:

In the datagrid settings properties, locate the "Language" setting
Select your preferred language from the dropdown options

Language Selection for Filters

The language used in the filters will then reflect to be that of your chosen language

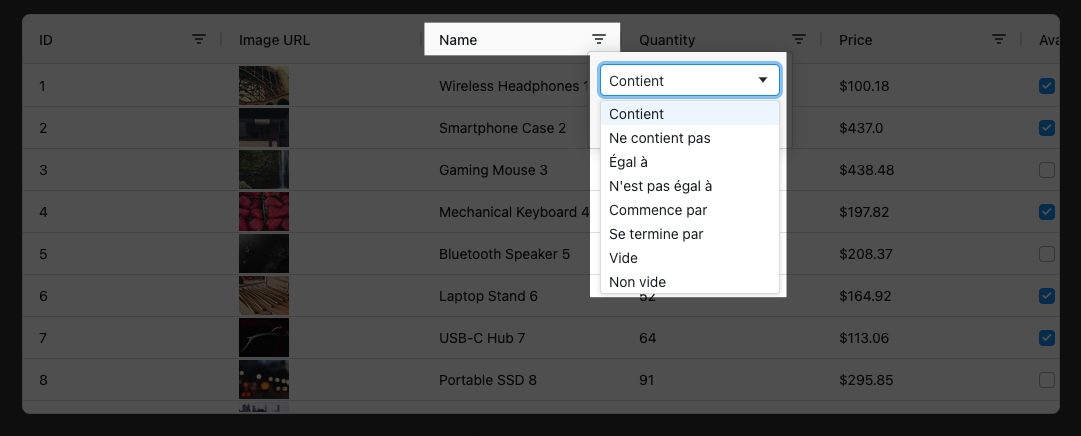

Filter Options in Selected Language

LANGUAGE NOT UPDATING

If you experience an issue where the language in the filter does not correctly update to your chosen language, you may need to refresh the page or re-render the datagrid by turning its conditional rendering property off then on. This is due to a technical limitation that we aim to address in a future update.

Defining custom language

For complete control over the language used throughout the datagrid:

Select Custom from the Language dropdown

Custom Language Setting

When Custom is selected, you'll see a Locale texts input field where you can provide a JSON object with all text strings

Locale Texts Input

In the Locale texts input, pass in your object with your custom language deifined. Below is the full object you need to pass in:

Click to view the entire custom language object

javascript

{
    // Set Filter
    selectAll: '(Select All)',
    selectAllSearchResults: '(Select All Search Results)',
    addCurrentSelectionToFilter: 'Add current selection to filter',
    searchOoo: 'Search...',
    blanks: '(Blanks)',
    noMatches: 'No matches',

    // Number Filter & Text Filter
    filterOoo: 'Filter...',
    equals: 'Equals',
    notEqual: 'Does not equal',
    blank: 'Blank',
    notBlank: 'Not blank',
    empty: 'Choose one',

    // Number Filter
    lessThan: 'Less than',
    greaterThan: 'Greater than',
    lessThanOrEqual: 'Less than or equal to',
    greaterThanOrEqual: 'Greater than or equal to',
    inRange: 'Between',
    inRangeStart: 'From',
    inRangeEnd: 'To',

    // Text Filter
    contains: 'Contains',
    notContains: 'Does not contain',
    startsWith: 'Begins with',
    endsWith: 'Ends with',

    // Date Filter
    dateFormatOoo: 'yyyy-mm-dd',
    before: 'Before',
    after: 'After',

    // Filter Conditions
    andCondition: 'AND',
    orCondition: 'OR',

    // Filter Buttons
    applyFilter: 'Apply',
    resetFilter: 'Reset',
    clearFilter: 'Clear',
    cancelFilter: 'Cancel',

    // Filter Titles
    textFilter: 'Text Filter',
    numberFilter: 'Number Filter',
    dateFilter: 'Date Filter',
    setFilter: 'Set Filter',

    // Group Column Filter
    groupFilterSelect: 'Select field:',

    // Advanced Filter
    advancedFilterContains: 'contains',
    advancedFilterNotContains: 'does not contain',
    advancedFilterTextEquals: 'equals',
    advancedFilterTextNotEqual: 'does not equal',
    advancedFilterStartsWith: 'begins with',
    advancedFilterEndsWith: 'ends with',
    advancedFilterBlank: 'is blank',
    advancedFilterNotBlank: 'is not blank',
    advancedFilterEquals: '=',
    advancedFilterNotEqual: '!=',
    advancedFilterGreaterThan: '>',
    advancedFilterGreaterThanOrEqual: '>=',
    advancedFilterLessThan: '<',
    advancedFilterLessThanOrEqual: '<=',
    advancedFilterTrue: 'is true',
    advancedFilterFalse: 'is false',
    advancedFilterAnd: 'AND',
    advancedFilterOr: 'OR',
    advancedFilterApply: 'Apply',
    advancedFilterBuilder: 'Builder',
    advancedFilterValidationMissingColumn: 'Column is missing',
    advancedFilterValidationMissingOption: 'Option is missing',
    advancedFilterValidationMissingValue: 'Value is missing',
    advancedFilterValidationInvalidColumn: 'Column not found',
    advancedFilterValidationInvalidOption: 'Option not found',
    advancedFilterValidationMissingQuote: 'Value is missing an end quote',
    advancedFilterValidationNotANumber: 'Value is not a number',
    advancedFilterValidationInvalidDate: 'Value is not a valid date',
    advancedFilterValidationMissingCondition: 'Condition is missing',
    advancedFilterValidationJoinOperatorMismatch: 'Join operators within a condition must be the same',
    advancedFilterValidationInvalidJoinOperator: 'Join operator not found',
    advancedFilterValidationMissingEndBracket: 'Missing end bracket',
    advancedFilterValidationExtraEndBracket: 'Too many end brackets',
    advancedFilterValidationMessage: 'Expression has an error. ${variable} - ${variable}.',
    advancedFilterValidationMessageAtEnd: 'Expression has an error. ${variable} at end of expression.',
    advancedFilterBuilderTitle: 'Advanced Filter',
    advancedFilterBuilderApply: 'Apply',
    advancedFilterBuilderCancel: 'Cancel',
    advancedFilterBuilderAddButtonTooltip: 'Add Filter or Group',
    advancedFilterBuilderRemoveButtonTooltip: 'Remove',
    advancedFilterBuilderMoveUpButtonTooltip: 'Move Up',
    advancedFilterBuilderMoveDownButtonTooltip: 'Move Down',
    advancedFilterBuilderAddJoin: 'Add Group',
    advancedFilterBuilderAddCondition: 'Add Filter',
    advancedFilterBuilderSelectColumn: 'Select a column',
    advancedFilterBuilderSelectOption: 'Select an option',
    advancedFilterBuilderEnterValue: 'Enter a value...',
    advancedFilterBuilderValidationAlreadyApplied: 'Current filter already applied.',
    advancedFilterBuilderValidationIncomplete: 'Not all conditions are complete.',
    advancedFilterBuilderValidationSelectColumn: 'Must select a column.',
    advancedFilterBuilderValidationSelectOption: 'Must select an option.',
    advancedFilterBuilderValidationEnterValue: 'Must enter a value.',

    // Side Bar
    columns: 'Columns',
    filters: 'Filters',

    // columns tool panel
    pivotMode: 'Pivot Mode',
    groups: 'Row Groups',
    rowGroupColumnsEmptyMessage: 'Drag here to set row groups',
    values: 'Values',
    valueColumnsEmptyMessage: 'Drag here to aggregate',
    pivots: 'Column Labels',
    pivotColumnsEmptyMessage: 'Drag here to set column labels',

    // Header of the Default Group Column
    group: 'Group',

    // Row Drag
    rowDragRow: 'row',
    rowDragRows: 'rows',

    // Other
    loadingOoo: 'Loading...',
    loadingError: 'ERR',
    noRowsToShow: 'No Rows To Show',
    enabled: 'Enabled',

    // Menu
    pinColumn: 'Pin Column',
    pinLeft: 'Pin Left',
    pinRight: 'Pin Right',
    noPin: 'No Pin',
    valueAggregation: 'Value Aggregation',
    noAggregation: 'None',
    autosizeThisColumn: 'Autosize This Column',
    autosizeAllColumns: 'Autosize All Columns',
    groupBy: 'Group by',
    ungroupBy: 'Un-Group by',
    ungroupAll: 'Un-Group All',
    addToValues: 'Add ${variable} to values',
    removeFromValues: 'Remove ${variable} from values',
    addToLabels: 'Add ${variable} to labels',
    removeFromLabels: 'Remove ${variable} from labels',
    resetColumns: 'Reset Columns',
    expandAll: 'Expand All Row Groups',
    collapseAll: 'Close All Row Groups',
    copy: 'Copy',
    ctrlC: 'Ctrl+C',
    ctrlX: 'Ctrl+X',
    copyWithHeaders: 'Copy With Headers',
    copyWithGroupHeaders: 'Copy with Group Headers',
    cut: 'Cut',
    paste: 'Paste',
    ctrlV: 'Ctrl+V',
    export: 'Export',
    csvExport: 'CSV Export',
    excelExport: 'Excel Export',
    columnFilter: 'Column Filter',
    columnChooser: 'Choose Columns',
    chooseColumns: 'Choose Columns',
    sortAscending: 'Sort Ascending',
    sortDescending: 'Sort Descending',
    sortUnSort: 'Clear Sort',

    // Enterprise Menu Aggregation and Status Bar
    sum: 'Sum',
    first: 'First',
    last: 'Last',
    min: 'Min',
    max: 'Max',
    none: 'None',
    count: 'Count',
    avg: 'Average',
    filteredRows: 'Filtered',
    selectedRows: 'Selected',
    totalRows: 'Total Rows',
    totalAndFilteredRows: 'Rows',
    more: 'More',
    to: 'to',
    of: 'of',
    page: 'Page',
    pageLastRowUnknown: '?',
    nextPage: 'Next Page',
    lastPage: 'Last Page',
    firstPage: 'First Page',
    previousPage: 'Previous Page',
    pageSizeSelectorLabel: 'Page Size:',
    footerTotal: 'Total',
    statusBarLastRowUnknown: '?',
    scrollColumnIntoView: 'Scroll ${variable} into view',

    // Pivoting
    pivotColumnGroupTotals: 'Total',

    // Enterprise Menu (Charts)
    pivotChartAndPivotMode: 'Pivot Chart & Pivot Mode',
    pivotChart: 'Pivot Chart',
    chartRange: 'Chart Range',

    columnChart: 'Column',
    groupedColumn: 'Grouped',
    stackedColumn: 'Stacked',
    normalizedColumn: '100% Stacked',

    barChart: 'Bar',
    groupedBar: 'Grouped',
    stackedBar: 'Stacked',
    normalizedBar: '100% Stacked',

    pieChart: 'Pie',
    pie: 'Pie',
    donut: 'Donut',

    lineChart: 'Line',
    stackedLine: 'Stacked',
    normalizedLine: '100% Stacked',

    xyChart: 'X Y (Scatter)',
    scatter: 'Scatter',
    bubble: 'Bubble',

    areaChart: 'Area',
    area: 'Area',
    stackedArea: 'Stacked',
    normalizedArea: '100% Stacked',

    histogramChart: 'Histogram',

    polarChart: 'Polar',
    radarLine: 'Radar Line',
    radarArea: 'Radar Area',
    nightingale: 'Nightingale',
    radialColumn: 'Radial Column',
    radialBar: 'Radial Bar',

    statisticalChart: 'Statistical',
    boxPlot: 'Box Plot',
    rangeBar: 'Range Bar',
    rangeArea: 'Range Area',

    hierarchicalChart: 'Hierarchical',
    treemap: 'Treemap',
    sunburst: 'Sunburst',

    specializedChart: 'Specialized',
    waterfall: 'Waterfall',
    heatmap: 'Heatmap',

    combinationChart: 'Combination',
    columnLineCombo: 'Column & Line',
    AreaColumnCombo: 'Area & Column',

    // Charts
    pivotChartTitle: 'Pivot Chart',
    rangeChartTitle: 'Range Chart',
    settings: 'Chart',
    data: 'Set Up',
    format: 'Customize',
    categories: 'Categories',
    defaultCategory: '(None)',
    series: 'Series',
    switchCategorySeries: 'Switch Category / Series',
    categoryValues: 'Category Values',
    seriesLabels: 'Series Labels',
    aggregate: 'Aggregate',
    xyValues: 'X Y Values',
    paired: 'Paired Mode',
    axis: 'Axis',
    xAxis: 'Horizontal Axis',
    yAxis: 'Vertical Axis',
    polarAxis: 'Polar Axis',
    radiusAxis: 'Radius Axis',
    navigator: 'Navigator',
    zoom: 'Zoom',
    animation: 'Animation',
    crosshair: 'Crosshair',
    color: 'Color',
    thickness: 'Thickness',
    preferredLength: 'Preferred Length',
    xType: 'X Type',
    axisType: 'Axis Type',
    automatic: 'Automatic',
    category: 'Category',
    number: 'Number',
    time: 'Time',
    timeFormat: 'Time Format',
    autoRotate: 'Auto Rotate',
    labelRotation: 'Rotation',
    circle: 'Circle',
    polygon: 'Polygon',
    square: 'Square',
    cross: 'Cross',
    diamond: 'Diamond',
    plus: 'Plus',
    triangle: 'Triangle',
    heart: 'Heart',
    orientation: 'Orientation',
    fixed: 'Fixed',
    parallel: 'Parallel',
    perpendicular: 'Perpendicular',
    radiusAxisPosition: 'Position',
    ticks: 'Ticks',
    gridLines: 'Grid Lines',
    width: 'Width',
    height: 'Height',
    length: 'Length',
    padding: 'Padding',
    spacing: 'Spacing',
    chartStyle: 'Chart Style',
    title: 'Title',
    chartTitles: 'Titles',
    chartTitle: 'Chart Title',
    chartSubtitle: 'Subtitle',
    horizontalAxisTitle: 'Horizontal Axis Title',
    verticalAxisTitle: 'Vertical Axis Title',
    polarAxisTitle: 'Polar Axis Title',
    titlePlaceholder: 'Chart Title',
    background: 'Background',
    font: 'Font',
    weight: 'Weight',
    top: 'Top',
    right: 'Right',
    bottom: 'Bottom',
    left: 'Left',
    labels: 'Labels',
    calloutLabels: 'Callout Labels',
    sectorLabels: 'Sector Labels',
    positionRatio: 'Position Ratio',
    size: 'Size',
    shape: 'Shape',
    minSize: 'Minimum Size',
    maxSize: 'Maximum Size',
    legend: 'Legend',
    position: 'Position',
    markerSize: 'Marker Size',
    markerStroke: 'Marker Stroke',
    markerPadding: 'Marker Padding',
    itemSpacing: 'Item Spacing',
    itemPaddingX: 'Item Padding X',
    itemPaddingY: 'Item Padding Y',
    layoutHorizontalSpacing: 'Horizontal Spacing',
    layoutVerticalSpacing: 'Vertical Spacing',
    strokeWidth: 'Stroke Width',
    offset: 'Offset',
    offsets: 'Offsets',
    tooltips: 'Tooltips',
    callout: 'Callout',
    markers: 'Markers',
    shadow: 'Shadow',
    blur: 'Blur',
    xOffset: 'X Offset',
    yOffset: 'Y Offset',
    lineWidth: 'Line Width',
    lineDash: 'Line Dash',
    lineDashOffset: 'Dash Offset',
    scrollingZoom: 'Scrolling',
    scrollingStep: 'Scrolling Step',
    selectingZoom: 'Selecting',
    durationMillis: 'Duration (ms)',
    crosshairLabel: 'Label',
    crosshairSnap: 'Snap to Node',
    normal: 'Normal',
    bold: 'Bold',
    italic: 'Italic',
    boldItalic: 'Bold Italic',
    predefined: 'Predefined',
    fillOpacity: 'Fill Opacity',
    strokeColor: 'Line Color',
    strokeOpacity: 'Line Opacity',
    miniChart: 'Mini-Chart',
    histogramBinCount: 'Bin count',
    connectorLine: 'Connector Line',
    seriesItems: 'Series Items',
    seriesItemType: 'Item Type',
    seriesItemPositive: 'Positive',
    seriesItemNegative: 'Negative',
    seriesItemLabels: 'Item Labels',
    columnGroup: 'Column',
    barGroup: 'Bar',
    pieGroup: 'Pie',
    lineGroup: 'Line',
    scatterGroup: 'X Y (Scatter)',
    areaGroup: 'Area',
    polarGroup: 'Polar',
    statisticalGroup: 'Statistical',
    hierarchicalGroup: 'Hierarchical',
    specializedGroup: 'Specialized',
    combinationGroup: 'Combination',
    groupedColumnTooltip: 'Grouped',
    stackedColumnTooltip: 'Stacked',
    normalizedColumnTooltip: '100% Stacked',
    groupedBarTooltip: 'Grouped',
    stackedBarTooltip: 'Stacked',
    normalizedBarTooltip: '100% Stacked',
    pieTooltip: 'Pie',
    donutTooltip: 'Donut',
    lineTooltip: 'Line',
    stackedLineTooltip: 'Stacked',
    normalizedLineTooltip: '100% Stacked',
    groupedAreaTooltip: 'Area',
    stackedAreaTooltip: 'Stacked',
    normalizedAreaTooltip: '100% Stacked',
    scatterTooltip: 'Scatter',
    bubbleTooltip: 'Bubble',
    histogramTooltip: 'Histogram',
    radialColumnTooltip: 'Radial Column',
    radialBarTooltip: 'Radial Bar',
    radarLineTooltip: 'Radar Line',
    radarAreaTooltip: 'Radar Area',
    nightingaleTooltip: 'Nightingale',
    rangeBarTooltip: 'Range Bar',
    rangeAreaTooltip: 'Range Area',
    boxPlotTooltip: 'Box Plot',
    treemapTooltip: 'Treemap',
    sunburstTooltip: 'Sunburst',
    waterfallTooltip: 'Waterfall',
    heatmapTooltip: 'Heatmap',
    columnLineComboTooltip: 'Column & Line',
    areaColumnComboTooltip: 'Area & Column',
    customComboTooltip: 'Custom Combination',
    innerRadius: 'Inner Radius',
    startAngle: 'Start Angle',
    endAngle: 'End Angle',
    reverseDirection: 'Reverse Direction',
    groupPadding: 'Group Padding',
    seriesPadding: 'Series Padding',
    tile: 'Tile',
    whisker: 'Whisker',
    cap: 'Cap',
    capLengthRatio: 'Length Ratio',
    labelPlacement: 'Placement',
    inside: 'Inside',
    outside: 'Outside',
    noDataToChart: 'No data available to be charted.',
    pivotChartRequiresPivotMode: 'Pivot Chart requires Pivot Mode enabled.',
    chartSettingsToolbarTooltip: 'Menu',
    chartLinkToolbarTooltip: 'Linked to Grid',
    chartUnlinkToolbarTooltip: 'Unlinked from Grid',
    chartDownloadToolbarTooltip: 'Download Chart',
    chartMenuToolbarTooltip: 'Menu',
    chartEdit: 'Edit Chart',
    chartAdvancedSettings: 'Advanced Settings',
    chartLink: 'Link to Grid',
    chartUnlink: 'Unlink from Grid',
    chartDownload: 'Download Chart',
    histogramFrequency: 'Frequency',
    seriesChartType: 'Series Chart Type',
    seriesType: 'Series Type',
    secondaryAxis: 'Secondary Axis',
    seriesAdd: 'Add a series',
    categoryAdd: 'Add a category',
    bar: 'Bar',
    column: 'Column',
    histogram: 'Histogram',
    advancedSettings: 'Advanced Settings',
    direction: 'Direction',
    horizontal: 'Horizontal',
    vertical: 'Vertical',
    seriesGroupType: 'Group Type',
    groupedSeriesGroupType: 'Grouped',
    stackedSeriesGroupType: 'Stacked',
    normalizedSeriesGroupType: '100% Stacked',
    legendEnabled: 'Enabled',
    invalidColor: 'Color value is invalid',
    groupedColumnFull: 'Grouped Column',
    stackedColumnFull: 'Stacked Column',
    normalizedColumnFull: '100% Stacked Column',
    groupedBarFull: 'Grouped Bar',
    stackedBarFull: 'Stacked Bar',
    normalizedBarFull: '100% Stacked Bar',
    stackedAreaFull: 'Stacked Area',
    normalizedAreaFull: '100% Stacked Area',
    customCombo: 'Custom Combination',
    funnel: 'Funnel',
    coneFunnel: 'Cone Funnel',
    pyramid: 'Pyramid',
    funnelGroup: 'Funnel',
    funnelTooltip: 'Funnel',
    coneFunnelTooltip: 'Cone Funnel',
    pyramidTooltip: 'Pyramid',
    dropOff: 'Drop-Off',
    stageLabels: 'Stage Labels',
    reverse: 'Reverse',

    // ARIA
    ariaAdvancedFilterBuilderItem: '${variable}. Level ${variable}. Press ENTER to edit',
    ariaAdvancedFilterBuilderItemValidation: '${variable}. Level ${variable}. ${variable} Press ENTER to edit',
    ariaAdvancedFilterBuilderList: 'Advanced Filter Builder List',
    ariaAdvancedFilterBuilderFilterItem: 'Filter Condition',
    ariaAdvancedFilterBuilderGroupItem: 'Filter Group',
    ariaAdvancedFilterBuilderColumn: 'Column',
    ariaAdvancedFilterBuilderOption: 'Option',
    ariaAdvancedFilterBuilderValueP: 'Value',
    ariaAdvancedFilterBuilderJoinOperator: 'Join Operator',
    ariaAdvancedFilterInput: 'Advanced Filter Input',
    ariaChecked: 'checked',
    ariaColumn: 'Column',
    ariaColumnGroup: 'Column Group',
    ariaColumnFiltered: 'Column Filtered',
    ariaColumnSelectAll: 'Toggle All Columns Visibility',
    ariaDateFilterInput: 'Date Filter Input',
    ariaDefaultListName: 'List',
    ariaFilterColumnsInput: 'Filter Columns Input',
    ariaFilterFromValue: 'Filter from value',
    ariaFilterInput: 'Filter Input',
    ariaFilterList: 'Filter List',
    ariaFilterToValue: 'Filter to value',
    ariaFilterValue: 'Filter Value',
    ariaFilterMenuOpen: 'Open Filter Menu',
    ariaFilteringOperator: 'Filtering Operator',
    ariaHidden: 'hidden',
    ariaIndeterminate: 'indeterminate',
    ariaInputEditor: 'Input Editor',
    ariaMenuColumn: 'Press ALT DOWN to open column menu',
    ariaFilterColumn: 'Press CTRL ENTER to open filter',
    ariaRowDeselect: 'Press SPACE to deselect this row',
    ariaHeaderSelection: 'Column with Header Selection',
    ariaSelectAllCells: 'Press Space to select all cells',
    ariaRowSelectAll: 'Press Space to toggle all rows selection',
    ariaRowToggleSelection: 'Press Space to toggle row selection',
    ariaRowSelect: 'Press SPACE to select this row',
    ariaRowSelectionDisabled: 'Row Selection is disabled for this row',
    ariaSearch: 'Search',
    ariaSortableColumn: 'Press ENTER to sort',
    ariaToggleVisibility: 'Press SPACE to toggle visibility',
    ariaToggleCellValue: 'Press SPACE to toggle cell value',
    ariaUnchecked: 'unchecked',
    ariaVisible: 'visible',
    ariaSearchFilterValues: 'Search filter values',
    ariaPageSizeSelectorLabel: 'Page Size',
    ariaChartMenuClose: 'Close Chart Edit Menu',
    ariaChartSelected: 'Selected',
    ariaSkeletonCellLoadingFailed: 'Row failed to load',
    ariaSkeletonCellLoading: 'Row data is loading',

    // ARIA Labels for Drop Zones
    ariaRowGroupDropZonePanelLabel: 'Row Groups',
    ariaValuesDropZonePanelLabel: 'Values',
    ariaPivotDropZonePanelLabel: 'Column Labels',
    ariaDropZoneColumnComponentDescription: 'Press DELETE to remove',
    ariaDropZoneColumnValueItemDescription: 'Press ENTER to change the aggregation type',
    ariaDropZoneColumnGroupItemDescription: 'Press ENTER to sort',
    // used for aggregate drop zone, format: {aggregation}{ariaDropZoneColumnComponentAggFuncSeparator}{column name}
    ariaDropZoneColumnComponentAggFuncSeparator: ' of ',
    ariaDropZoneColumnComponentSortAscending: 'ascending',
    ariaDropZoneColumnComponentSortDescending: 'descending',

    ariaLabelDialog: 'Dialog',

    ariaLabelColumnMenu: 'Column Menu',
    ariaLabelColumnFilter: 'Column Filter',

    ariaLabelCellEditor: 'Cell Editor',
    ariaLabelSelectField: 'Select Field',

    // aria labels for async context menus
    ariaLabelLoadingContextMenu: 'Loading Context Menu',

    // aria labels for rich select
    ariaLabelRichSelectField: 'Rich Select Field',
    ariaLabelRichSelectToggleSelection: 'Press SPACE to toggle selection',
    ariaLabelRichSelectDeselectAllItems: 'Press DELETE to deselect all items',
    ariaLabelRichSelectDeleteSelection: 'Press DELETE to deselect item',

    ariaLabelTooltip: 'Tooltip',
    ariaLabelContextMenu: 'Context Menu',
    ariaLabelSubMenu: 'SubMenu',
    ariaLabelAggregationFunction: 'Aggregation Function',
    ariaLabelAdvancedFilterAutocomplete: 'Advanced Filter Autocomplete',
    ariaLabelAdvancedFilterBuilderAddField: 'Advanced Filter Builder Add Field',
    ariaLabelAdvancedFilterBuilderColumnSelectField: 'Advanced Filter Builder Column Select Field',
    ariaLabelAdvancedFilterBuilderOptionSelectField: 'Advanced Filter Builder Option Select Field',
    ariaLabelAdvancedFilterBuilderJoinSelectField: 'Advanced Filter Builder Join Operator Select Field',

    // ARIA Labels for the Side Bar
    ariaColumnPanelList: 'Column List',
    ariaFilterPanelList: 'Filter List',

    // Number Format (Status Bar, Pagination Panel)
    thousandSeparator: ',',
    decimalSeparator: '.',

    // Data types
    true: 'True',
    false: 'False',
    invalidDate: 'Invalid Date',
    invalidNumber: 'Invalid Number',
    january: 'January',
    february: 'February',
    march: 'March',
    april: 'April',
    may: 'May',
    june: 'June',
    july: 'July',
    august: 'August',
    september: 'September',
    october: 'October',
    november: 'November',
    december: 'December',

    // Time formats
    timeFormatSlashesDDMMYYYY: 'DD/MM/YYYY',
    timeFormatSlashesMMDDYYYY: 'MM/DD/YYYY',
    timeFormatSlashesDDMMYY: 'DD/MM/YY',
    timeFormatSlashesMMDDYY: 'MM/DD/YY',
    timeFormatDotsDDMYY: 'DD.M.YY',
    timeFormatDotsMDDYY: 'M.DD.YY',
    timeFormatDashesYYYYMMDD: 'YYYY-MM-DD',
    timeFormatSpacesDDMMMMYYYY: 'DD MMMM YYYY',
    timeFormatHHMMSS: 'HH:MM:SS',
    timeFormatHHMMSSAmPm: 'HH:MM:SS AM/PM',
}

For the complete language object template, please check the AG Grid Localization documentation or contact support.

For a video walkthrough on how to utilize the custom language, see below:

TIP

You can customize as many or as few entries as needed. Any keys not specified in your custom language object will fall back to the default English text.

Sorting configuration

The datagrid allows you to define the initial sorting order of your data when the grid first loads.

Initial sorting

You can set up sorting rules that will be applied when the datagrid first loads:

In the datagrid settings properties, locate the Initial Sort setting

Initial Sort Setting

Input an array that defines which columns to sort by and in what order

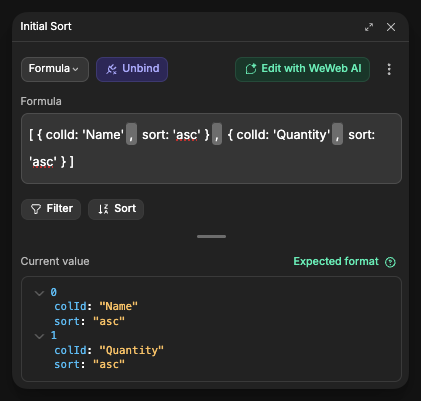

Initial Sort Example

The sort configuration is an array of sort rules, with each rule specifying a column ID and sort direction:

javascript

[
  { colId: "ColumnName", sort: "asc" },  // First sort by this column ascending
  { colId: "AnotherColumn", sort: "desc" }  // Then sort by this column descending
]

Sort options

Option	Description
colId	The ID of the column to sort (matches the `key` of the column)
sort	The sort direction: `asc` (ascending) or `desc` (descending)

Example sorting configurations

Sort by a single column:

javascript

[
  { colId: "Price", sort: "desc" }  // Sort by Price high to low
]

Sort by multiple columns:

javascript

[
  { colId: "Category", sort: "asc" },  // First sort by Category alphabetically
  { colId: "Price", sort: "desc" }     // Then sort by Price high to low within each category
]

Multi-level sorting:

javascript

[
  { colId: "InStock", sort: "desc" },  // Show in-stock items first
  { colId: "Category", sort: "asc" },  // Then sort by Category alphabetically
  { colId: "Name", sort: "asc" }       // Then sort by Name alphabetically
]

Interactive features

Cell editing

Enable users to edit data directly in the grid:

Select a column in the properties panel
Toggle on Editable

Users can now double-click a cell to edit its content

Edit cell value

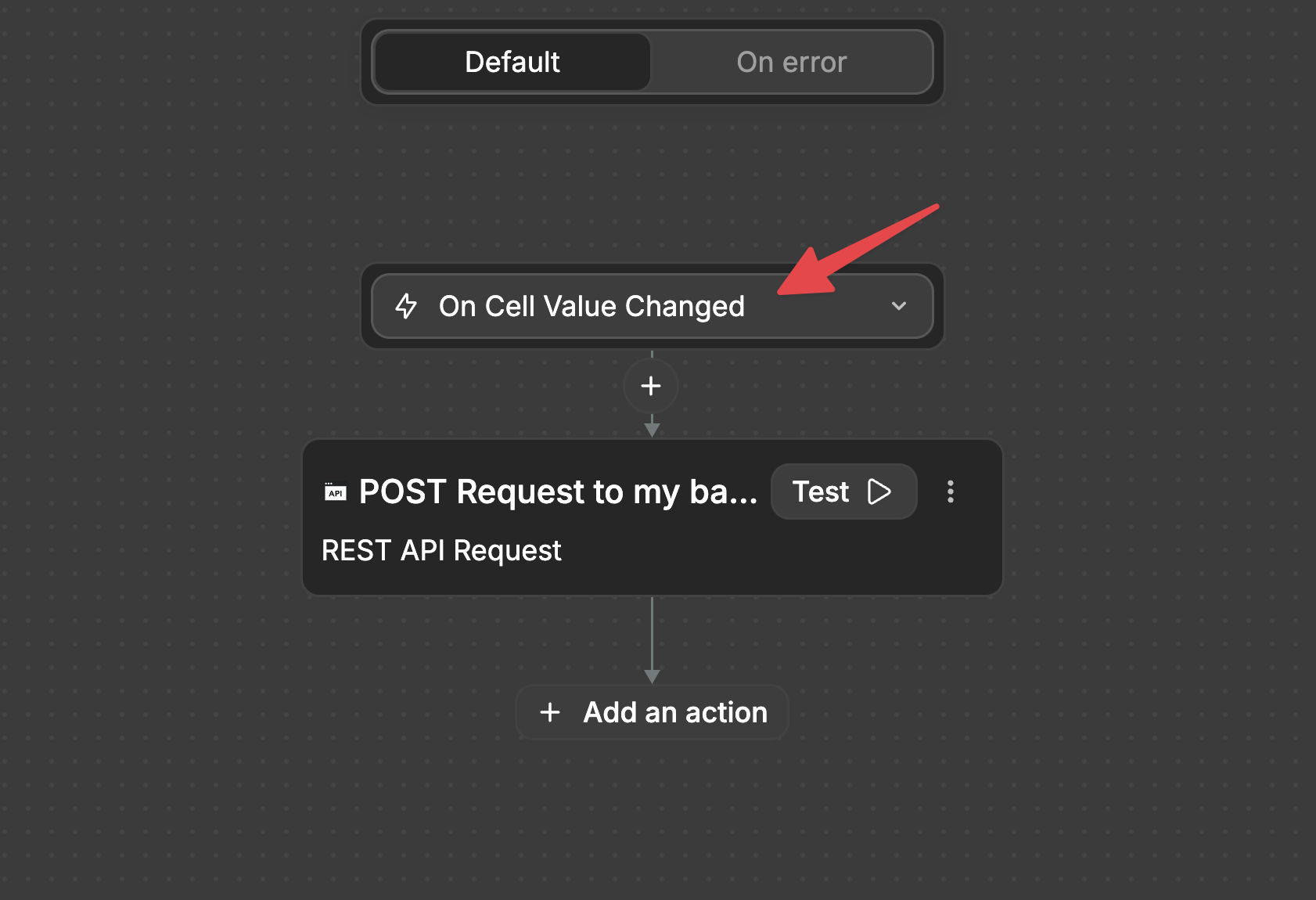

Create a workflow on the datagrid using the On Cell Value Changed trigger

In your workflow, you'll have access to:
- The old value
- The new value
- Which column was changed
- The complete row data

Row selection

Allow users to select one or multiple rows:

In the datagrid properties, set Row Selection to either Single or Multiple
Users can now select rows by clicking on them

Row Selection

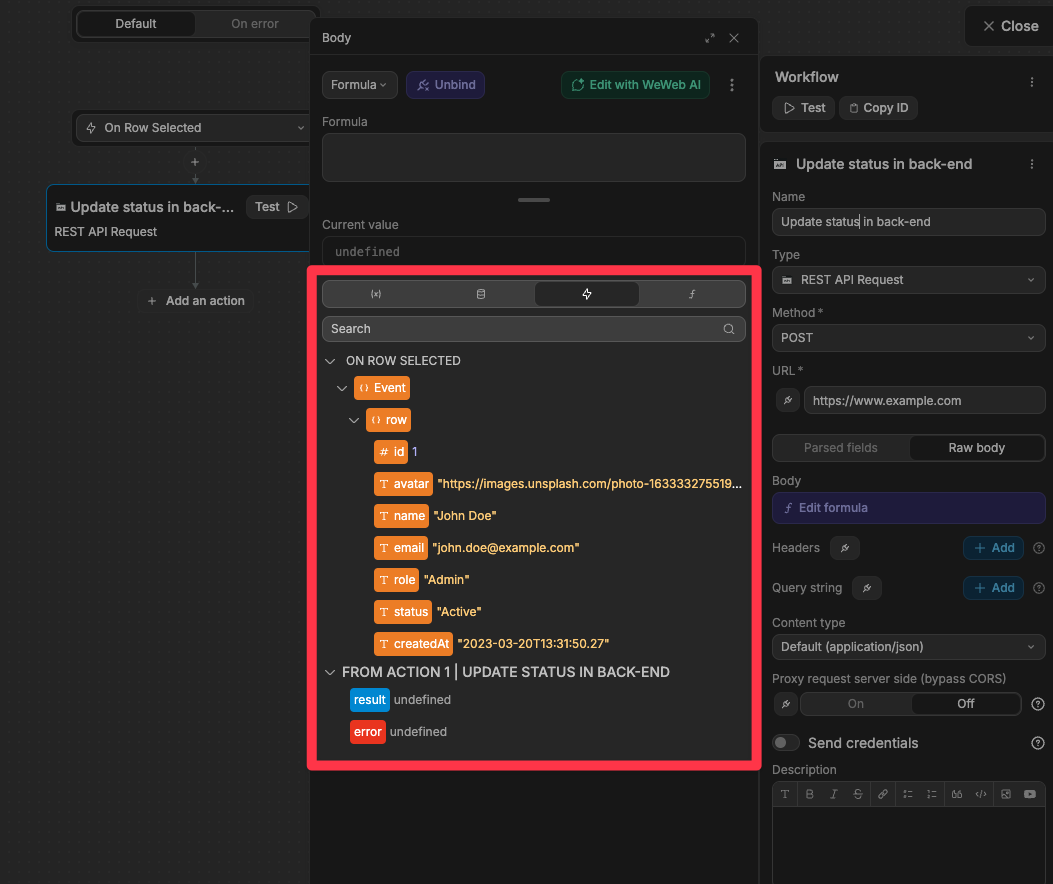

Create workflows for selection events:
- On Row Selected: Triggered when a row is selected

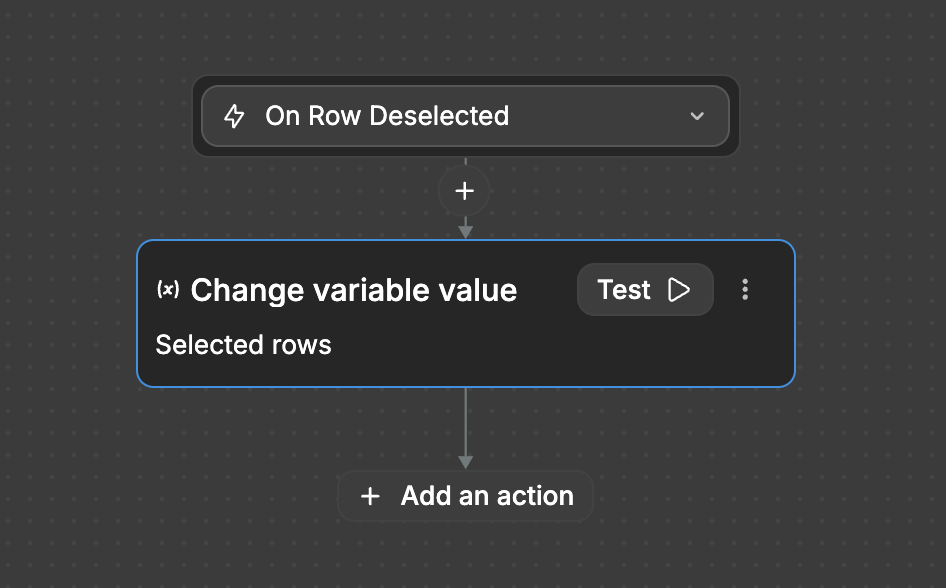

- On Row Deselected: Triggered when a row is deselected

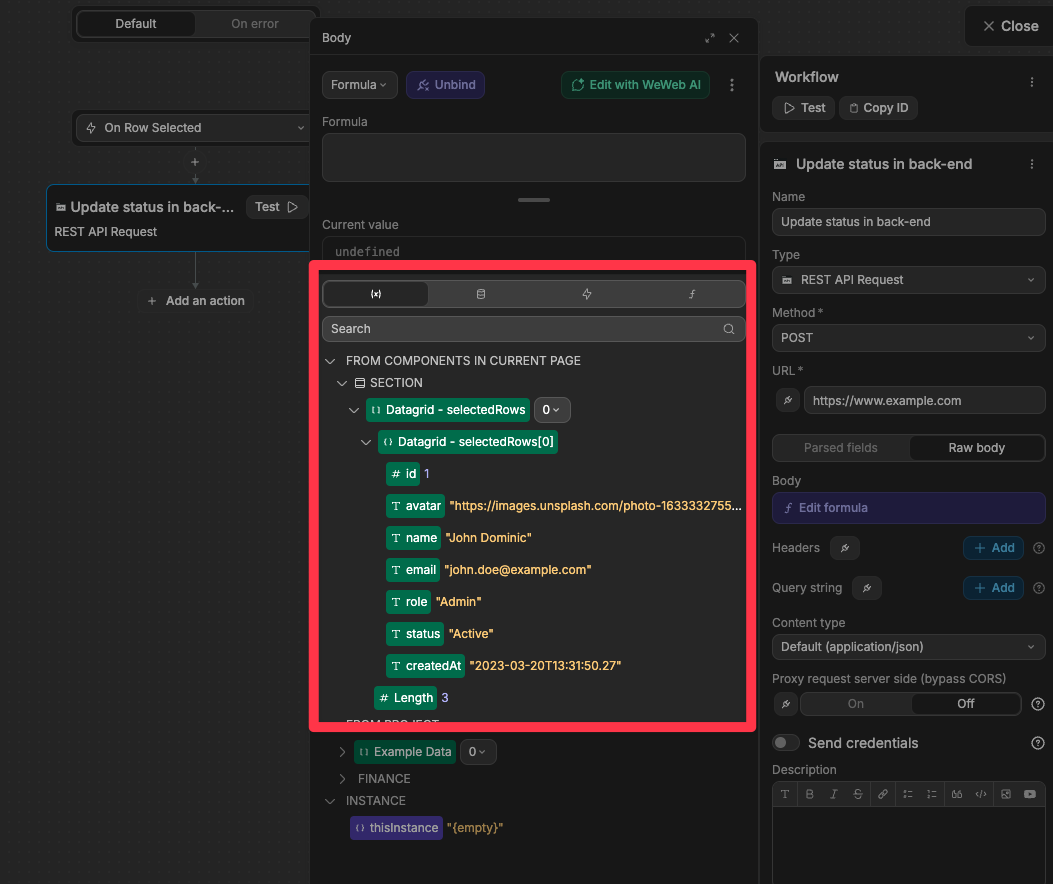

Access all currently selected rows via the exposed selectedRows variable OR access only the data of the row that triggered the On Row Selected or On Row Deselected event

Advanced row selection options

For more control over row selection behavior, you can configure these additional options:

Enable Click Selection: When enabled, users can select rows by clicking anywhere on the row.
- When enabled with multiple selection mode, users can:
  - Shift+Click: Select a range of rows between the currently selected row and the clicked row
  - Ctrl+Click (Windows/Linux) or Cmd+Click (Mac): Add or remove individual rows from the current selection
Disable Checkboxes: Hides the selection checkboxes from the grid.
Select All Behavior: Controls what happens when the "Select All" checkbox in the header is clicked:
- All: Selects all rows in the grid, including those not currently visible due to filtering or pagination
- Filtered: Only selects rows that match the current filter criteria
- Current Page: Only selects rows visible on the current page when pagination is enabled

Action buttons

Add interactive buttons to each row of your datagrid:

Add a new column with type set to Action
Configure:
- Action Name: Identifier for the action (used in workflows)
- Action Label: Text displayed on the button

Setting up action buttons

Create a workflow on the datagrid using the On Action trigger
In your workflow, you'll have access to:
- Which action was triggered
- The complete row data

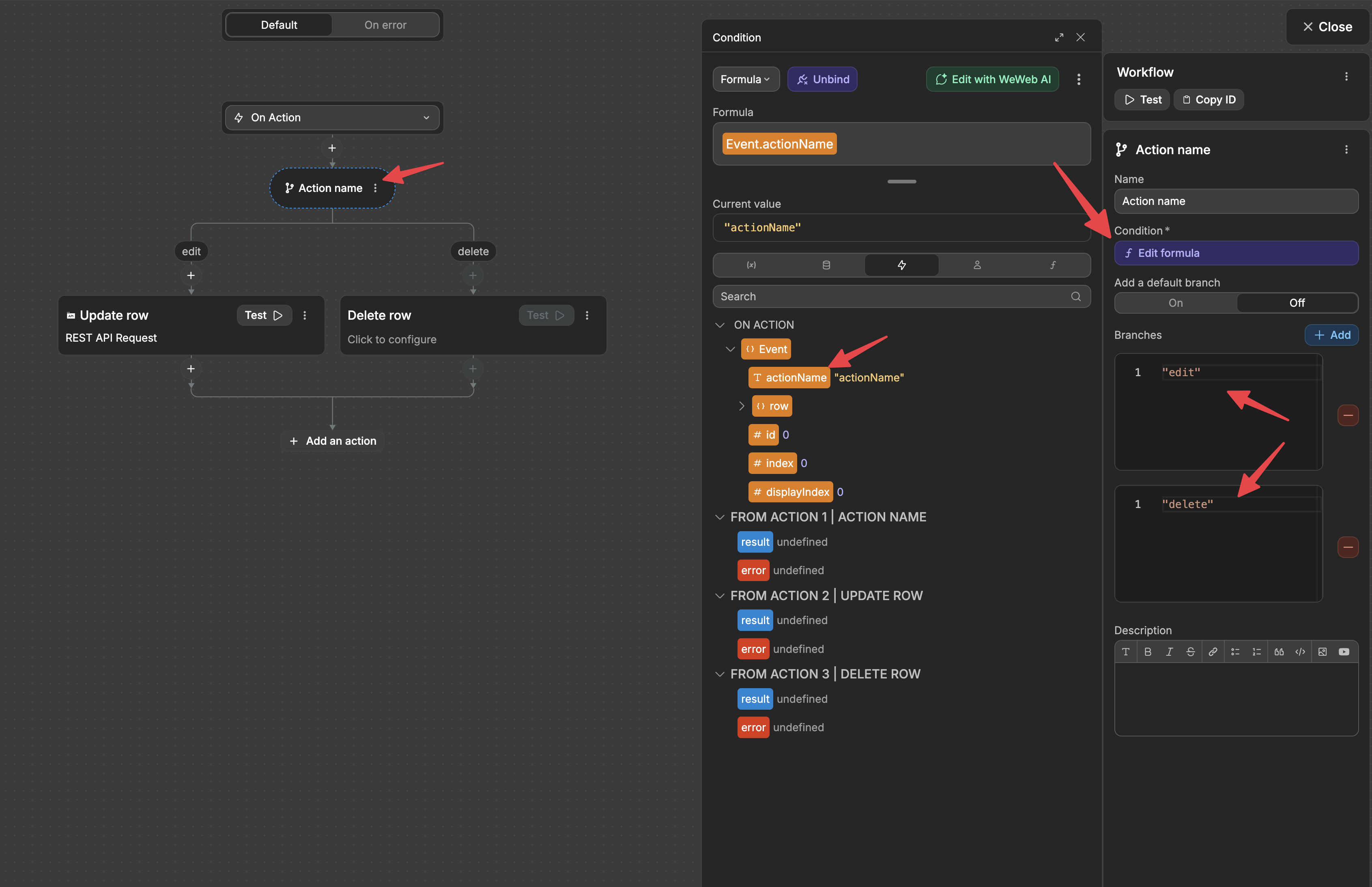

Setting up action workflow

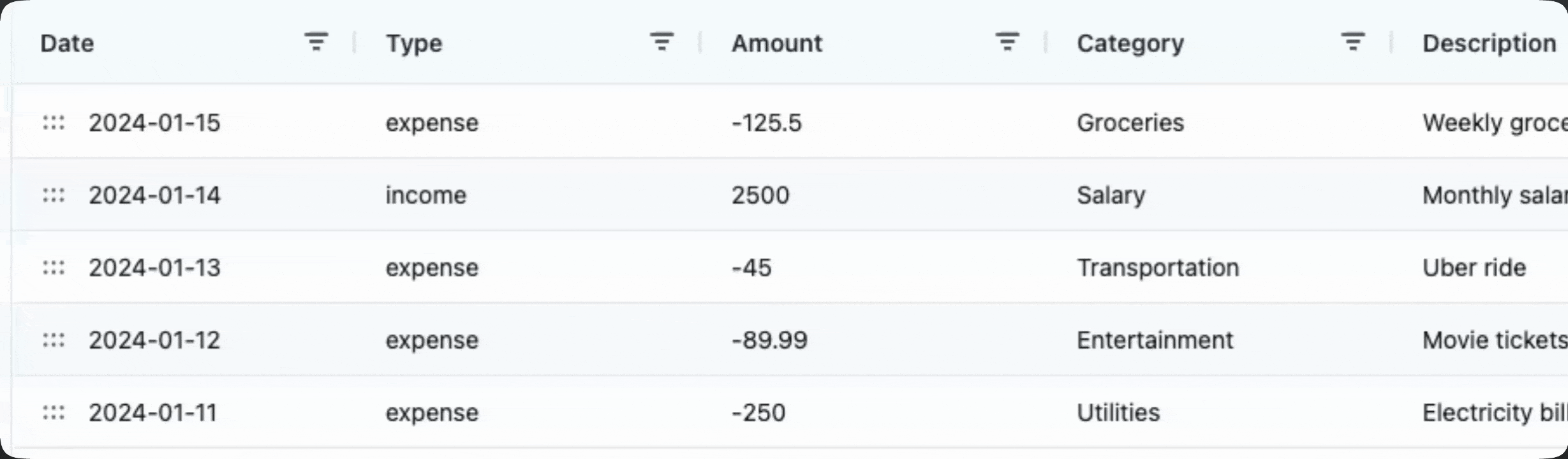

Row reordering

Reorder rows by drag-and-drop:

In the datagrid settings, toggle on Row Reorder
A drag handle will be enabled on the first column to move rows
Use events to react to reordering:
- On Row Drag Start: fires when a drag starts
- On Row Dragged: fires when a drag ends; includes the updated rows order and the targetIndex

Using Datagrid Row Reorder

WARNING

Row reordering is not compatible with pagination. Disable Pagination to reorder rows.

Column moving

Allow users to reorder columns:

In the datagrid settings, toggle on Movable Columns
Users can drag headers to change the column order
The On Column Moved event is emitted when a move finishes, including the new columnsOrder

Custom cell content

Create completely custom cell rendering:

Add a column with type set to Custom
A Dropzone appears on the canvas where you can add any UI elements
Drag and drop elements into this dropzone to create your custom cell appearance
These elements will have access to the cell value and the entire row data

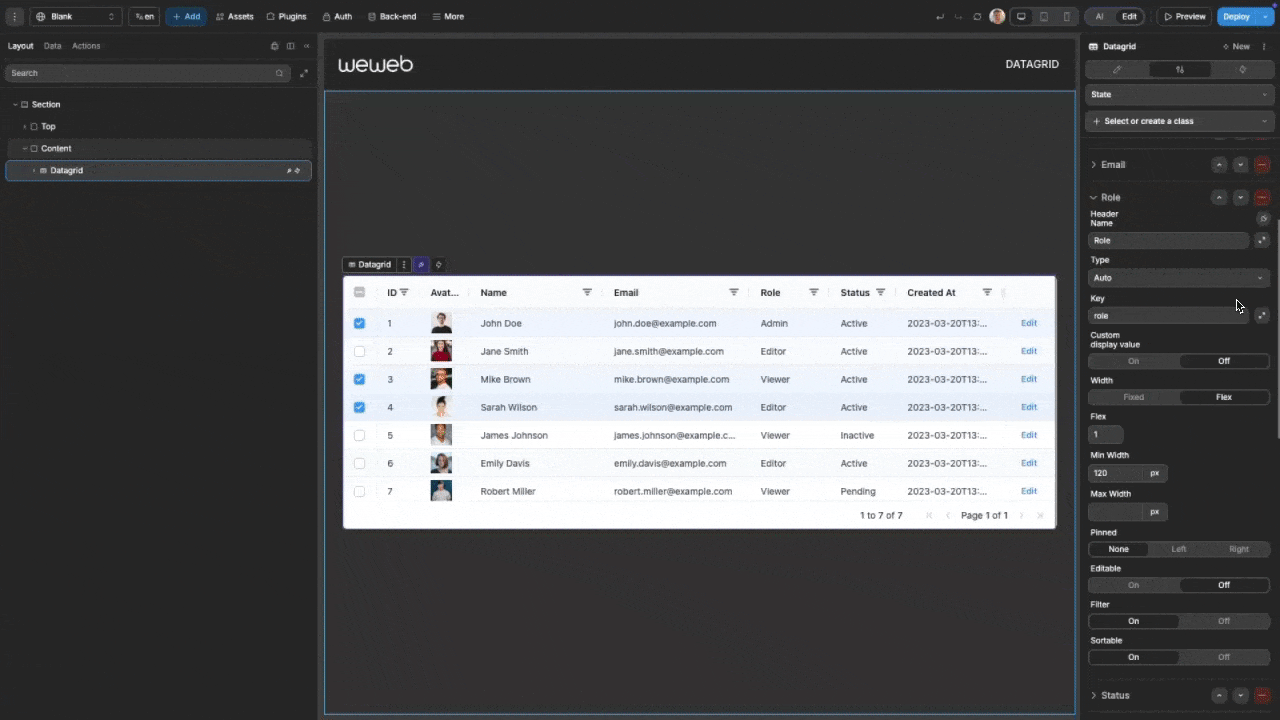

Using Datagrid Custom Column

Managing large datasets

The datagrid provides two approaches to handling large amounts of data:

Virtual scrolling (default)

By default, the datagrid uses virtual scrolling to efficiently render large datasets:

Only visible rows are rendered in the DOM
Rows load dynamically as users scroll
Provides smooth performance even with thousands of rows

Using Virtual Scroll

Pagination

To enable pagination in the Datagrid, you can toggle on Pagination in the datagrid properties:

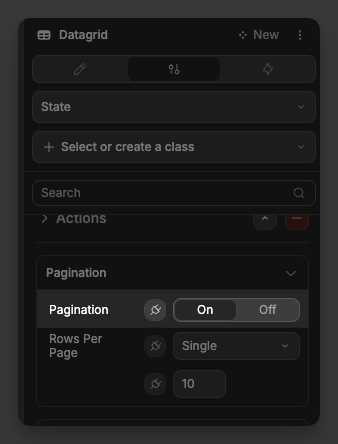

Pagination Toggle

The datagrid will now display page navigation controls, and users can browse through pages of data.

Using Pagination

Pagination Types

There are two pagination types:

Single

Single: use a fixed Rows Per Page number

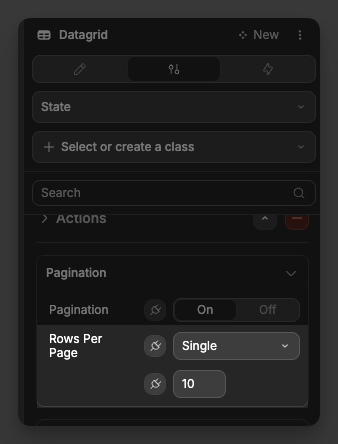

Using Datagrid Single Pagination

Multiple

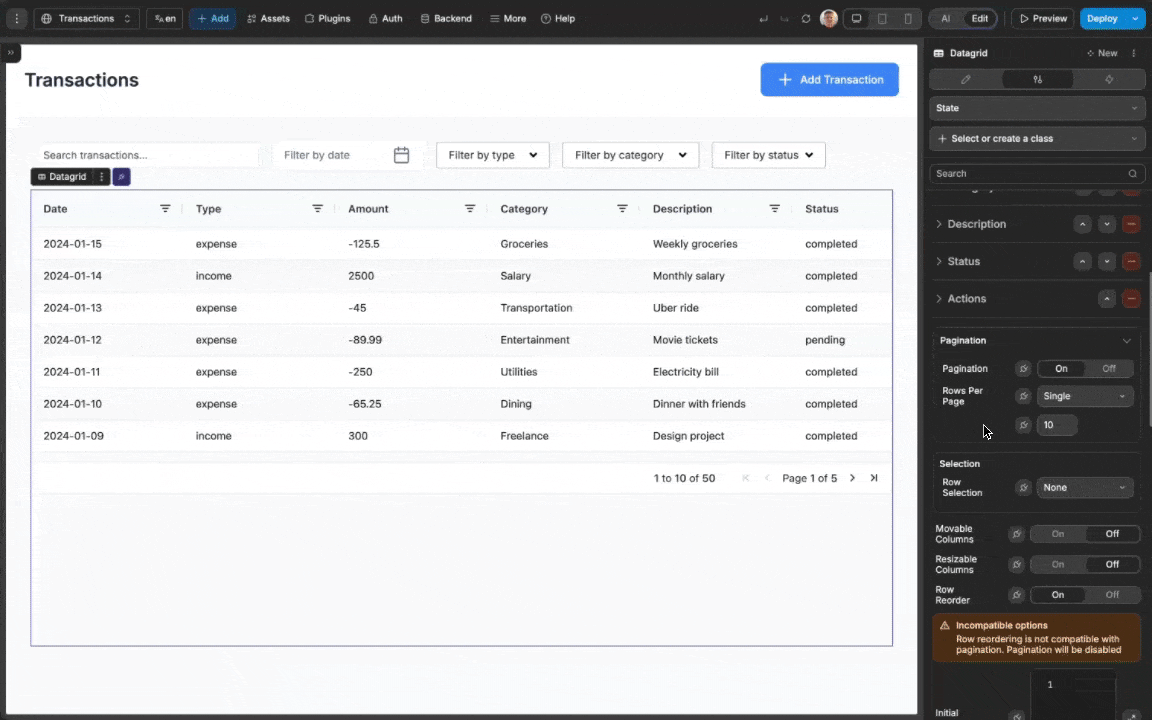

Multiple: provide a Rows Per Page Options array (e.g., [10, 20, 50, 100]) to show a selector in the grid Using Datagrid Multiple Pagination

Example use cases

Product Catalog: Display products with images, pricing, inventory status, and edit/view actions
User Management: List users with filterable columns for roles, status, and registration dates
Financial Dashboard: Present financial data with custom number formatting and row selection
Task Tracker: Show tasks with status indicators, due dates, and action buttons
Data Analysis: Enable sorting and filtering for data exploration with visual indicators

Forking

While the DataGrid component offers extensive built-in customization options, there may be cases where you need functionality beyond what's natively available. In these situations, you can fork the component and modify it to meet your specific requirements.

If you are unsure how to fork an element, you can learn more in the dedicated documentation.

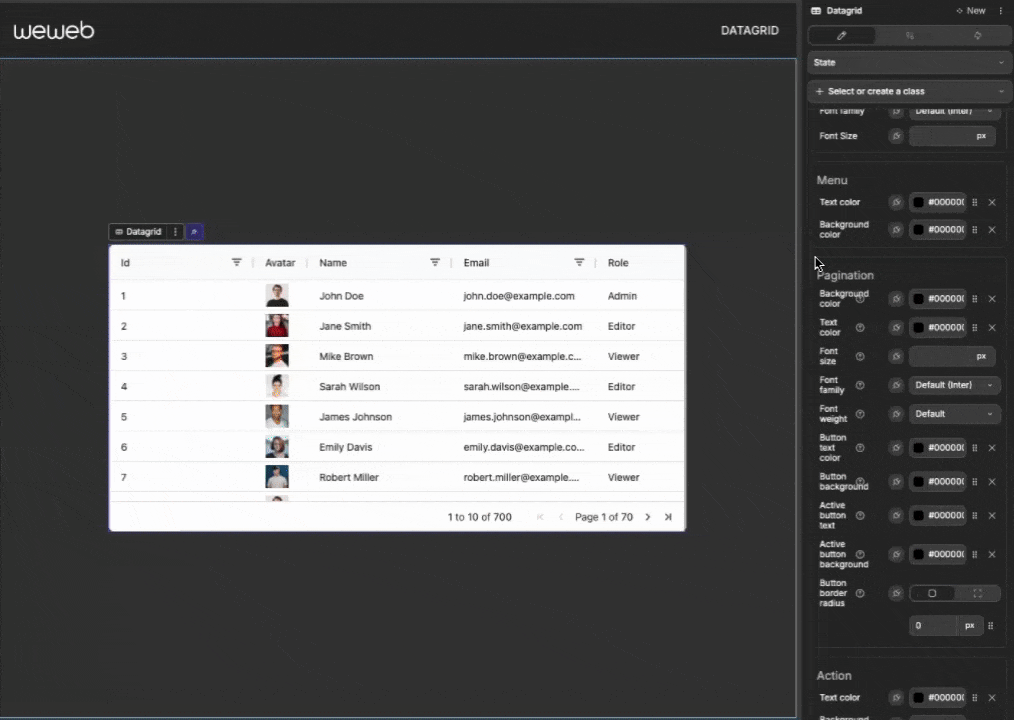

Forking example: custom pagination styling

One reason to fork the DataGrid would be to create styling properties not available in the standard component. For example, you might want to be able to change the styling of the pagination.

To do so, you could fork the datagrid, then edit with AI and pass in the following prompt:

I want to edit this forked datagrid so that I can change the styling of the pagination

The AI will then add new styling properties to control the appearance of different aspects of the pagination: Controlling Pagination Styling

Properties reference

Settings properties

Property	Options/Type	Description
Data	Collection/Array	The data to display in the grid
Unique Row ID	Formula	What to use for the Unique ID of each row
Columns	Array	Configuration for each column in the grid
Row Selection	None, Single, Multiple	Determines how users can select rows
Enable Click Selection	Boolean	When enabled, allows row selection by clicking anywhere on the row
Disable Checkboxes	Boolean	Hides selection checkboxes when using row selection
Select All Behavior	All, Filtered, Current Page	Controls what happens when the "Select All" checkbox is clicked
Pagination	Boolean	Enable/disable pagination for large datasets
Rows Per Page	Single/Multiple	Choose a fixed size (`Single`) or show a selector (`Multiple`)
Rows Per Page (Single)	Number	Number of rows per page when `Rows Per Page` is `Single`
Rows Per Page Options (Multiple)	Array	Page size options when `Rows Per Page` is `Multiple` (e.g., `[10, 20, 50, 100]`)
Movable Columns	Boolean	Allow users to reorder columns via drag and drop
Resizable Columns	Boolean	Allow users to adjust column widths
Initial Filters	Object	Define filters to be applied when the grid first loads
Initial Sort	Array	Define sorting to be applied when the grid first loads
Initial Columns Order	Array	Define initial column ordering by ID
Row Reorder	Boolean	Allow row reordering by drag and drop (incompatible with pagination)
Language	English, French, Spanish, German, Portuguese, Custom	Set the language for built-in grid text
Locale Texts	Object	Customize all text strings when using Custom language

Column properties

Each column in the datagrid can be configured with these properties:

Property	Options/Type	Description
Header Name	Text	The title displayed at the top of the column
Type	Text, Number, Boolean, Date, Image, Action, Custom	The type of data in this column
Key	Text	The field name from your data source
Width	Fixed/Flex	Column width approach (fixed pixel width or flexible)
Min Width	Pixels	Minimum column width
Max Width	Pixels	Maximum column width
Filter	Boolean	Enable/disable filtering for this column
Sortable	Boolean	Enable/disable sorting for this column
Pinned	None, Left, Right	Pin the column to the edge of the grid
Editable	Boolean	Allow users to edit cell values
Custom Display	Boolean	Use a formula to format how values are displayed
Hidden	Boolean	Hide the column from view while retaining it in the grid definition
Header Alignment	Left, Center, Right	Controls alignment of the column header label
Column Alignment	Left, Center, Right	Controls horizontal alignment for cell content in the whole column

Image column properties

Property	Description
Image Width	Width of the displayed image
Image Height	Height of the displayed image

Action column properties

Property	Description
Action Name	Identifier for the action (used in workflows)
Action Label	Text displayed on the button

Styling properties

General

Property	Description
Height Mode	Choose between Fixed height or Auto (based on content)
Grid Height	Set the height of the grid when using Fixed mode
Text Color	Global text color for the grid
Border Color	Color of grid borders

Property	Description
Background Color	Set the background color of the header row
Text Color	Set the color of header text
Font Weight	Control the boldness of header text
Font Size	Adjust the size of header text
Font Family	Choose the font for header text
Header Height Mode	Choose between Fixed height or Auto (adapts to content)
Header Height	Set the header row height in pixels when using Fixed mode

Row

Property	Description
Background Color	Set the background color of rows
Alternate Color	Set the color for alternating rows
Hover Color	Set the background color when hovering over rows
Vertical Padding Scale	Adjust vertical spacing in rows (0-5)
Selected Background Color	Highlight color for selected rows

Column

Property	Description
Hover Highlight	Toggle column highlight effect on hover
Hover Color	Set the color for the column hover effect

Cell

Property	Description
Text Color	Set the color of cell text
Font Family	Choose the font for cell text
Font Size	Adjust the size of cell text
Cell Alignment Mode	Choose `Same as column` (default) or `Custom` to override alignment
Column Alignment (Custom)	When mode is Custom, set Left/Center/Right or bind a value

Property	Description
Text Color	Set the color of text in filter menus
Background Color	Set the background color of filter menus

Selection

Property	Description
Selected Background Color	Set the background color for selected rows
Selection Checkboxes Color	Set the color for selection checkboxes and radio toggles in the filter dropdown
Focus Shadow	Set the shadow effect for focused inputs (e.g. checkboxes, filter inputs etc)
Checkbox Unchecked Border Color	Set the border color for unchecked checkboxes

Action

Property	Description
Text Color	Set the color of action button text
Background Color	Set the background color of action buttons
Padding	Add space around action button text
Border	Set the border style for action buttons
Border Radius	Control the roundness of action button corners
Font Settings	Configure typography for action buttons

Event triggers

The datagrid component provides events you can use to trigger workflows:

Event	Description	Payload
On Action	Triggered when an action button is clicked	`{ actionName, row, id, index, displayIndex }`
On Cell Value Changed	Triggered after a cell value is edited	`{ oldValue, newValue, columnId, row }`
On Row Selected	Triggered when a row is selected	`{ row }`
On Row Deselected	Triggered when a row is deselected	`{ row }`
On Filter Changed	Triggered when filters are changed	Filter model object
On Sort Changed	Triggered when sort order is changed	Sort model array
On Row Clicked	Triggered when a row is clicked	`{ row, id, index, displayIndex }`
On Row Drag Start	Triggered when a row drag begins	`{ row, id }`
On Row Dragged	Triggered when a row is dropped	`{ row, id, targetIndex, rows }`
On Column Moved	Triggered after a column is moved by the user	`{ columnId, toIndex, columnsOrder }`

Example event payloads

On Action

javascript

{
  actionName: "edit",
  row: {
    id: 42,
    name: "Product A",
    price: 29.99,
    inStock: true
  },
  id: 42,
  index: 5,
  displayIndex: 2
}

On Cell Value Changed

javascript

{
  oldValue: 29.99,
  newValue: 24.99,
  columnId: "price",
  row: {
    id: 42,
    name: "Product A",
    price: 24.99,
    inStock: true
  }
}

On Row Selected / On Row Deselected

javascript

{
  row: {
    id: 42,
    name: "Product A",
    price: 29.99,
    inStock: true
  }
}

On Filter Changed

javascript

{
  "Category": {
    "type": "equals",
    "filter": "Electronics"
  },
  "Price": {
    "type": "greaterThan",
    "filter": 100
  }
}

On Sort Changed

javascript

[
  { colId: "Category", sort: "asc" },
  { colId: "Price", sort: "desc" }
]

On Row Clicked

javascript

{
  row: {
    id: 42,
    name: "Product A",
    price: 29.99,
    inStock: true
  },
  id: 42,
  index: 5,
  displayIndex: 2
}

On Row Drag Start

javascript

{
  row: {
    id: 42,
    name: "Product A",
    price: 29.99,
    inStock: true
  },
  id: 42
}

On Row Dragged

javascript

{
  row: {
    id: 42,
    name: "Product A",
    price: 29.99,
    inStock: true
  },
  id: 42,
  targetIndex: 1,
  rows: [ /* full array of rows in new order */ ]
}

On Column Moved

javascript

{
  columnId: "price",
  toIndex: 1,
  columnsOrder: ["id", "name", "price", "inStock"]
}

Exposed variables

The datagrid component exposes the following variables for use in your application:

Variable	Type	Description
selectedRows	Array	Array of currently selected rows
filters	Object	Current filter model applied to the grid
sort	Array	Current sort model applied to the grid
columnOrder	Array	Current ordered list of column IDs

Example variable values

selectedRows

javascript

[
  {
    id: 42,
    name: "Product A",
    price: 29.99,
    inStock: true
  },
  {
    id: 43,
    name: "Product B",
    price: 49.99,
    inStock: false
  }
]

filters

javascript

{
  "Category": {
    "type": "equals",
    "filter": "Electronics"
  },
  "Price": {
    "type": "greaterThan",
    "filter": 100
  }
}

sort

javascript

[
  { colId: "Category", sort: "asc" },
  { colId: "Price", sort: "desc" }
]

columnOrder

javascript

["id", "name", "price", "inStock"]

Component actions

Action	Description	Parameters
Reset filters	Clears all active filters	–
Reset sort	Clears all active sort	–
Select all	Selects rows based on mode or grid behavior	`mode` (optional): `all`
Deselect all	Clears all row selections	–
Select row	Selects a specific row by ID	`Row id` (string)
Deselect row	Deselects a specific row by ID	`Row id` (string)

Frequently asked questions

How can I filter data in my datagrid?

There are two main approaches to filtering data in the datagrid:

Client-side filtering:
- Create input elements (like text fields or dropdowns) for your filter criteria
- Create a computed variable that filters your original data based on these inputs
- Bind this filtered data to your datagrid
URL-based filtering:
- Set up query parameters in your URL (e.g., ?category=electronics&inStock=true)
- Create a workflow that filters data based on these query parameters
- This approach allows users to bookmark or share filtered views

For advanced filtering, you can also enable the built-in column filters:

Select a column in the properties panel
Toggle on the Filter property for that column
Users will see filter icons in the column headers

How do I add a "Delete" button to each row?

To add a delete button for each row:

Add a new column with type set to Action
Configure:
- Action Name: "delete" (or any identifier you prefer)
- Action Label: "Delete" (or your preferred button text)
Create a workflow on the datagrid using the On Action trigger
In the workflow condition, check if actionName === "delete"
Add actions to delete the row data (e.g., calling an API endpoint)
Optionally refresh your data collection after deletion

You can customize the button's appearance using the Action styling properties in the Style panel.

How can I create a "View More" modal for each row?

To implement a "View More" functionality that opens a modal with detailed information:

Add a new column with type set to Action
Configure:
- Action Name: "viewMore" (or any identifier you prefer)
- Action Label: "View" or "Details" (or your preferred button text)
Create a modal that will be used for showing the detailed information
Create a workflow on the datagrid using the On Action trigger
In the workflow condition, check if actionName === "viewMore"
In the workflow actions:
- Pass the selected row data to variables that will populate your modal
- Show the modal
Design your modal to display the detailed information from the row

This approach allows users to see condensed information in the table and expanded details in a modal when needed, creating a cleaner user interface while still providing access to all data.

How can I make certain columns editable but others read-only?

You can control editability on a per-column basis:

Select each column individually in the properties panel
Toggle on Editable only for the columns you want users to edit
Leave the property off for read-only columns

When implementing cell editing, remember to:

Create a workflow using the On Cell Value Changed trigger
Validate the edited data before saving changes
Update your backend data store with the changes

This selective approach gives you fine-grained control over which data users can modify.

How do I implement pagination with a specific number of rows per page?

To implement pagination with custom row count:

In the datagrid properties, toggle on Pagination
Set the Rows Per Page to your desired number (e.g., 5, 10, 25)
The datagrid will automatically add pagination controls

For more advanced pagination:

Create a dropdown to let users choose how many rows to display
Bind the Rows Per Page property to a variable controlled by this dropdown
Add a workflow to update this variable when the user changes their preference

This gives users flexibility while maintaining organized data presentation.

Can I style alternate rows with different colors?

Yes, you can create a striped or alternating row effect:

Go to the Style panel and find the Row section
Set your primary Background Color for standard rows
Set an Alternate Color for every other row

This creates a visual distinction between adjacent rows, making your data easier to scan and read, especially for wide tables with many columns.

How can I hide columns dynamically?

You can conditionally hide columns while retaining their definition in the grid:

Select a column in the properties panel
Toggle on the Hidden property or bind it to a variable
When bound to a variable, you can dynamically show/hide columns based on user preferences, screen size, or other conditions

This is particularly useful for:

Creating responsive layouts that show fewer columns on mobile devices
Letting users customize which columns they want to see
Building role-based views where certain columns are only visible to specific user roles

To implement user-controlled column visibility:

Create toggle buttons for each column
Bind each column's Hidden property to a variable controlled by these toggles
Save user preferences to localStorage or your backend for persistence

How can I change the language of the datagrid?

The datagrid supports multiple languages out of the box and allows custom translations:

In the datagrid settings, locate the Language property
Select from predefined options: English, French, Spanish, German, or Portuguese
All built-in text (filters, pagination controls, empty state messages, etc.) will update to the selected language

For custom language support:

Select Custom from the Language dropdown
In the Locale Texts property, provide a JSON object with your translations
You can customize as many or as few text strings as needed
Any keys not specified will fall back to English

This is useful for:

Supporting languages not included in the predefined list
Customizing specific text to match your application's terminology
Creating more user-friendly or domain-specific labels and messages

Data Grid New ​

Features ​

Getting started ​

Using AI ​

Manual setup ​

Column configuration ​

Column types ​

Custom display formatting ​

Dynamic column definition ​

Column pinning ​

Column Width Strategies ​

Dynamic column visibility ​

Building a column visibility controller ​

Filter configuration ​

Initial filters ​

Single condition filter ​

Multiple conditions filter ​

Available filter types by column type ​

Example filter configurations ​

Multiple conditions examples ​

Language selection ​

Defining custom language ​

Sorting configuration ​

Initial sorting ​

Sort options ​

Example sorting configurations ​

Interactive features ​

Cell editing ​

Row selection ​

Advanced row selection options ​

Action buttons ​

Row reordering ​

Column moving ​

Custom cell content ​

Managing large datasets ​

Virtual scrolling (default) ​

Pagination ​

Pagination Types ​

Example use cases ​

Forking ​

Forking example: custom pagination styling ​

Properties reference ​

Settings properties ​

Column properties ​

Image column properties ​

Action column properties ​

Styling properties ​

General ​

Header ​

Row ​

Column ​

Cell ​

Menu ​

Selection ​

Action ​

Event triggers ​

Example event payloads ​

On Action ​

On Cell Value Changed ​

On Row Selected / On Row Deselected ​

On Filter Changed ​

On Sort Changed ​

On Row Clicked ​

On Row Drag Start ​

On Row Dragged ​

On Column Moved ​

Exposed variables ​

Example variable values ​

selectedRows ​

filters ​

sort ​

columnOrder ​

Component actions ​

Frequently asked questions ​

Data Grid New

Features

Getting started

Using AI

Manual setup

Column configuration

Column types

Custom display formatting

Dynamic column definition

Column pinning

Column Width Strategies

Dynamic column visibility

Building a column visibility controller

Filter configuration

Initial filters

Single condition filter

Multiple conditions filter

Available filter types by column type

Example filter configurations

Multiple conditions examples

Language selection

Defining custom language

Sorting configuration

Initial sorting

Sort options

Example sorting configurations

Interactive features

Cell editing

Row selection

Advanced row selection options

Action buttons

Row reordering

Column moving

Custom cell content

Managing large datasets

Virtual scrolling (default)

Pagination

Pagination Types

Example use cases

Forking

Forking example: custom pagination styling

Properties reference

Settings properties

Column properties

Image column properties

Action column properties

Styling properties

General

Header

Row

Column

Cell

Menu

Selection

Action

Event triggers

Example event payloads

On Action

On Cell Value Changed

On Row Selected / On Row Deselected

On Filter Changed

On Sort Changed

On Row Clicked

On Row Drag Start

On Row Dragged

On Column Moved

Exposed variables

Example variable values

selectedRows

filters

sort

columnOrder

Component actions

Frequently asked questions
