Rich Text Input

The Rich Text Input provides a versatile editor for creating and editing formatted text content. It supports headings, lists, tables, links, mentions, and extensive formatting options. You can use it as an editor for content creation or in read-only mode for displaying rich text.

Features

Rich Formatting: Bold, italic, underline, strikethrough, and text colors
Text Structure: Headings (H1-H6), paragraphs, lists, and blockquotes
Advanced Elements: Tables, links, images, and code blocks
Mention System: Tag users or entities with customizable mention lists
Multiple Output Formats: HTML or Markdown output
Custom Styling: Style each element type independently
Custom Menu: Build your own editing toolbar
Form Integration: Works seamlessly with form validation
Read-Only Mode: Display formatted content without editing capabilities

Getting Started

Using AI

The quickest way to set up a rich text input is by using AI:

Ask AI to add the rich text input with specific requirements:
- "Add a rich text editor for blog post content"
- "Create a rich text input with mentions enabled for user tagging"
- "Add a minimal rich text editor with only basic formatting"
Continue refining by asking for specific features:
- "Enable mentions with user data from my users collection"
- "Add table support to the rich text editor"
- "Style the headings to match my design system"

Manual Setup

Add a Rich Text Input element from the Add panel
Configure basic settings:
- Set initial content in the Init value property
- Choose output format (HTML or Markdown)
- Enable or disable editing mode
Configure mentions (optional):
- Enable Mentions toggle
- Bind Mentions List to your user data
- Map ID and Label properties
Customize the toolbar:
- Show/hide specific formatting options
- Enable custom menu for complete control
Style different text elements:
- Configure heading styles (H1-H6)
- Style paragraphs, links, and mentions
- Customize table and code block appearance

Working With Content

Content Creation

The rich text editor provides an intuitive interface for content creation:

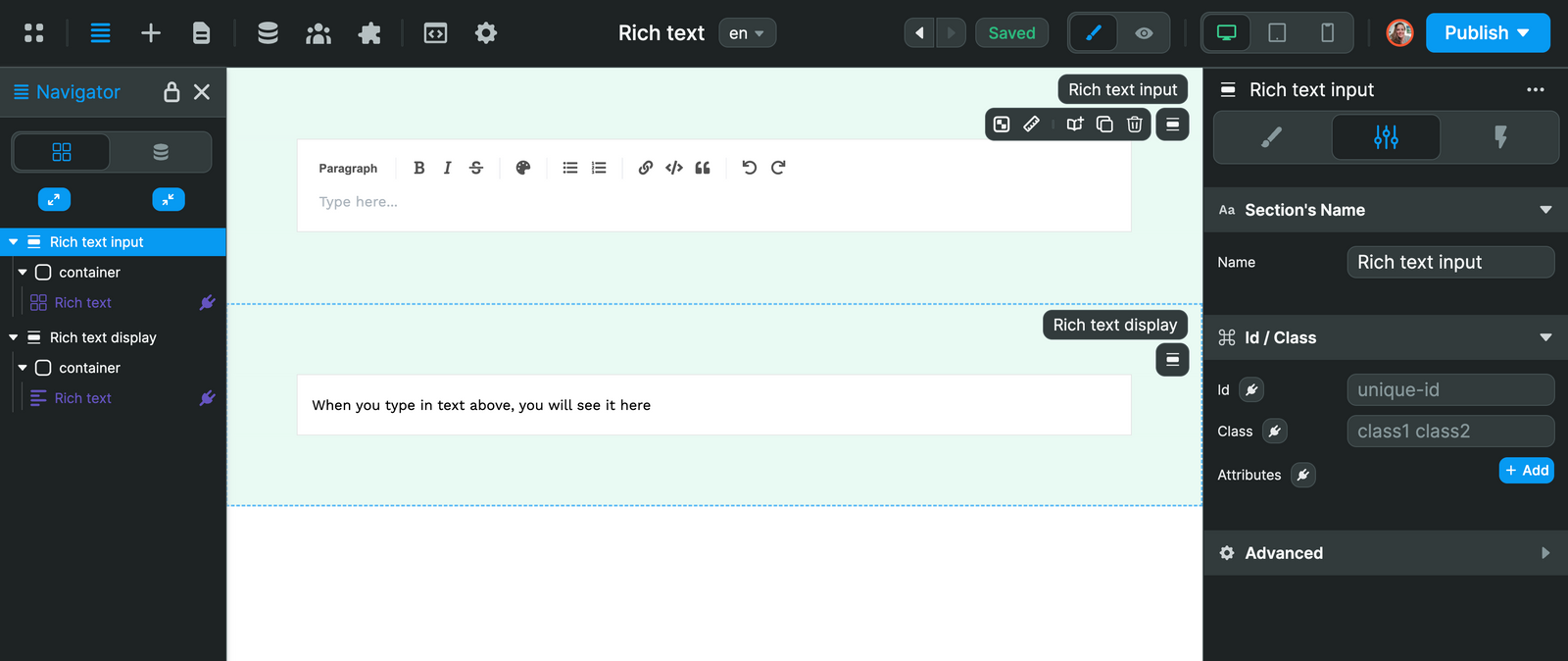

Rich text input in read and editing mode

Users can:

Type and format text with the toolbar
Use keyboard shortcuts for common formatting
Insert tables, links, and other elements
Tag users with the mention system

Markdown Support

The editor supports markdown input, allowing users to type markdown syntax that gets converted to rich formatting:

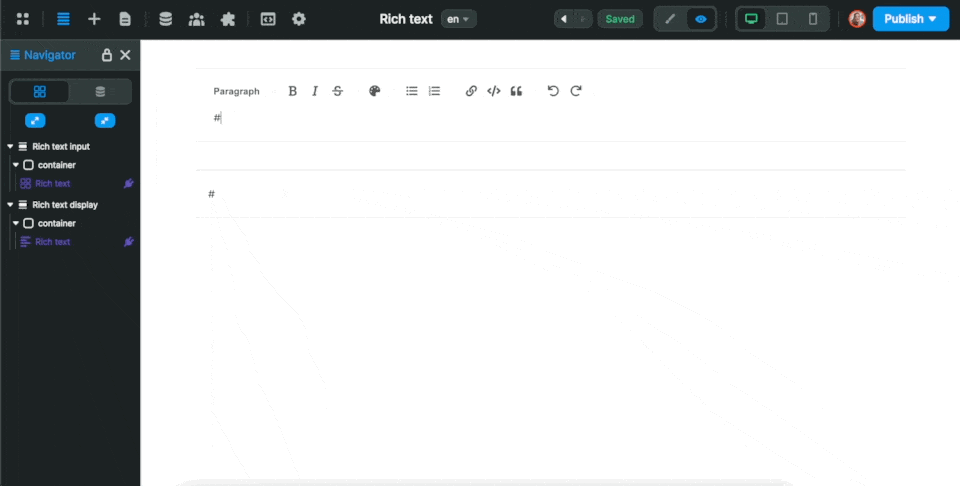

Rich text input in action

Output Formats

Choose between two output formats:

HTML: Structured HTML output perfect for web display
Markdown: Clean markdown format for storage or processing

Math Support

The rich text editor supports LaTeX mathematical expressions for both inline and block math:

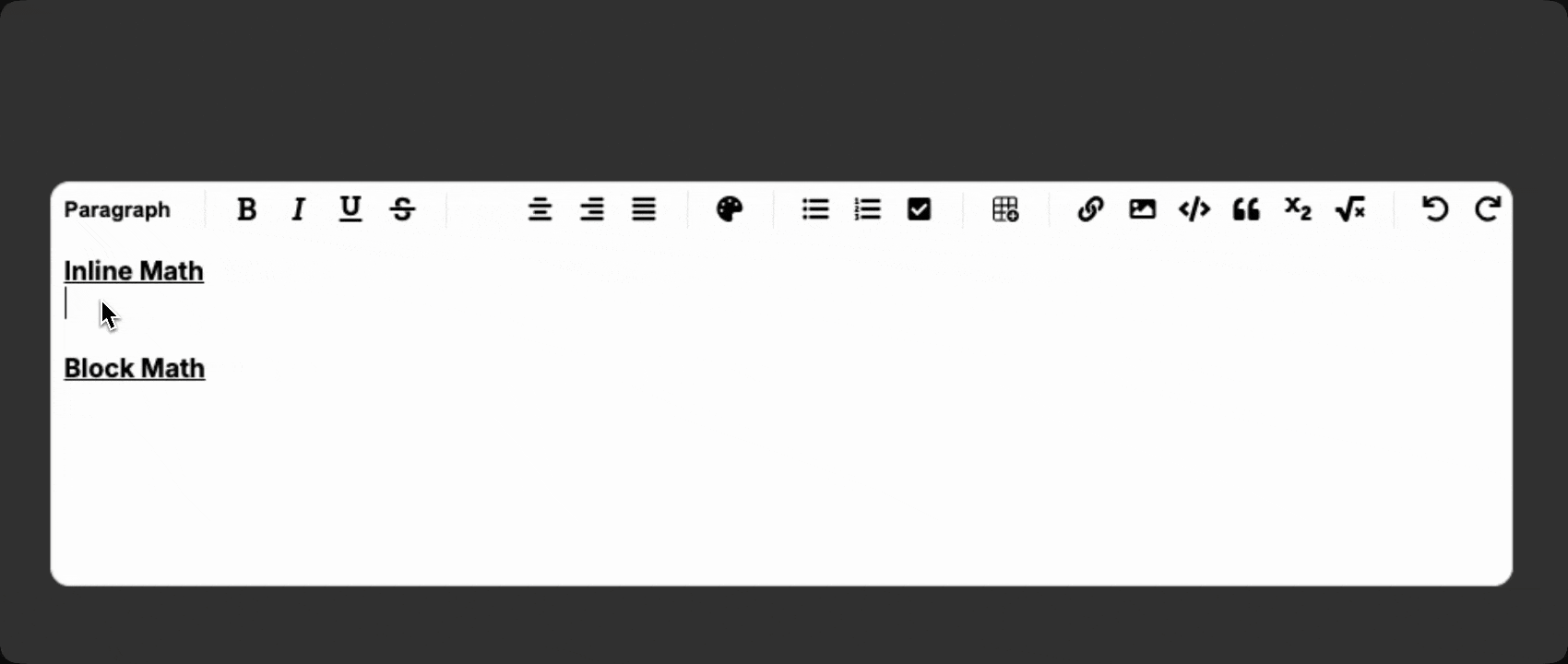

Inline Math: Use for mathematical expressions within text, like variables or simple formulas. For example, you can write about the famous equation E=mc² or mention that the area of a circle is πr².

$Inline Math$

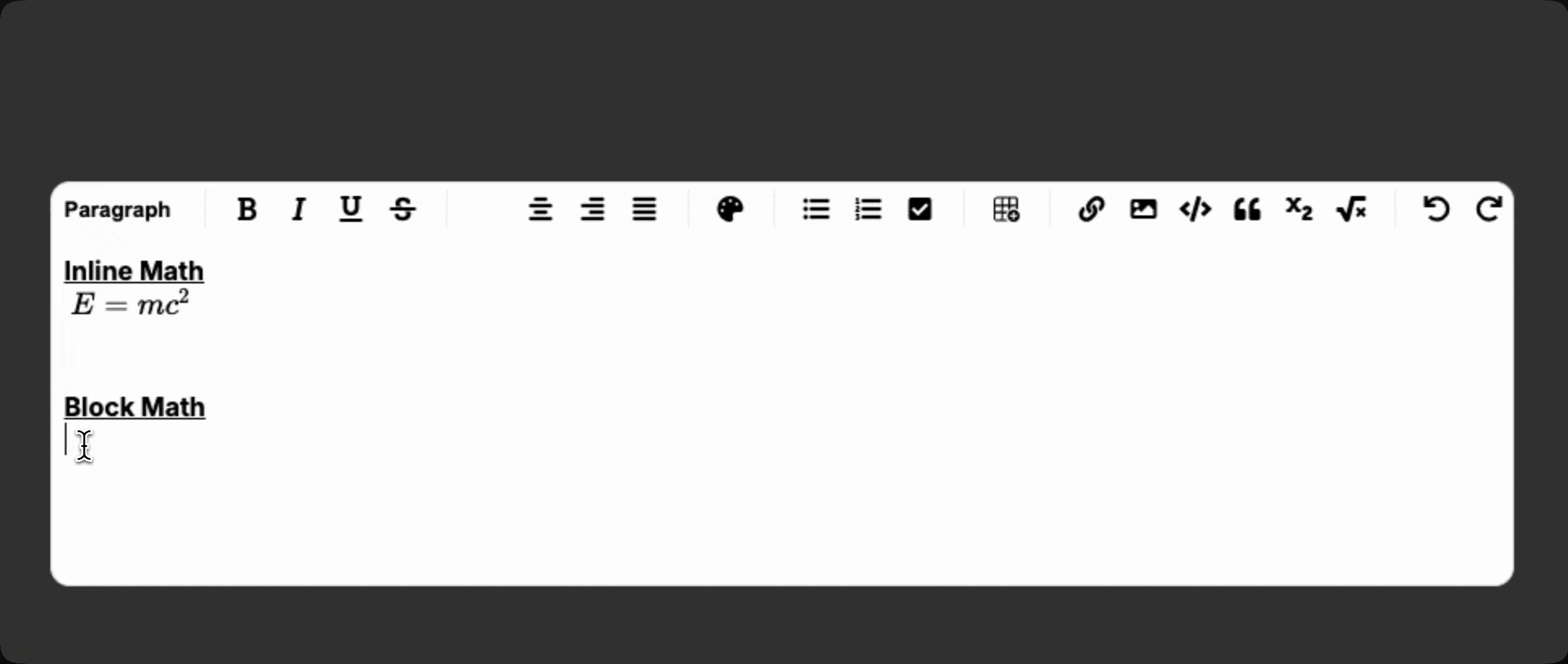

Block Math: Use for complex equations or formulas that need to be displayed prominently. Perfect for mathematical proofs, complex formulas, or scientific equations:

∫₀^∞ e^(-x²) dx = √π/2

$Block Math$

You can insert math using:

The toolbar buttons (when enabled)
Component actions: Insert Inline Math and Insert Block Math

Math Rendering

Math expressions are rendered using LaTeX syntax. Common examples include:

Fractions: \frac{a}{b}
Superscripts: x^2
Subscripts: x_1
Greek letters: \alpha, \beta, \pi
Integrals: \int_a^b f(x) dx

Mentions System

Enable user tagging and mentions within the rich text content:

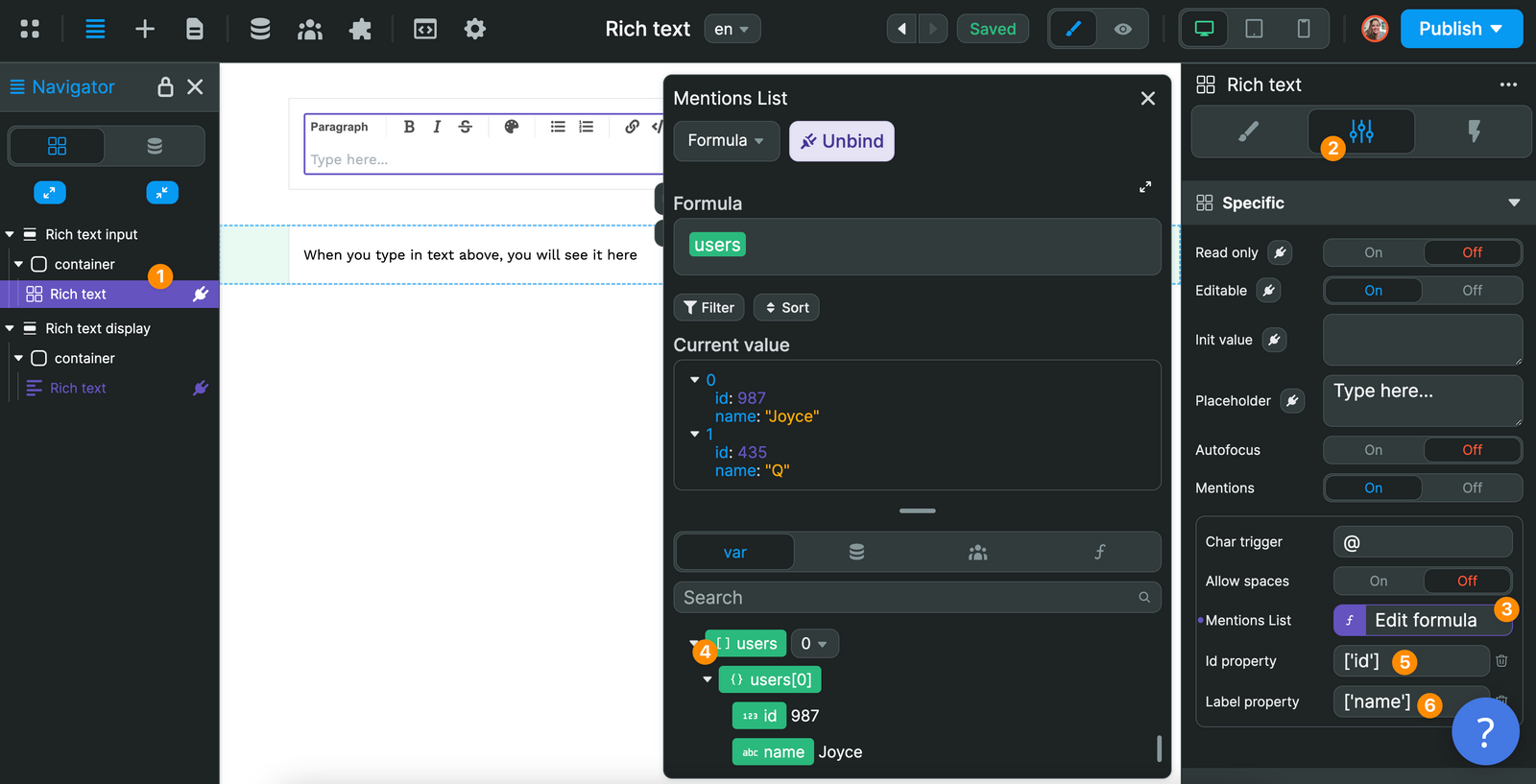

Mentions in the rich text input

Setting Up Mentions

Enable the Mentions toggle in settings
Bind Mentions List to your user data collection
Map the ID and Label properties to the correct fields in your data
Configure mention settings:
- Char trigger: Character that triggers mentions (default: @)
- Allow spaces: Whether mention searches can include spaces
- Numbers of suggestion: How many suggestions to show

Create your own editing toolbar with complete design control:

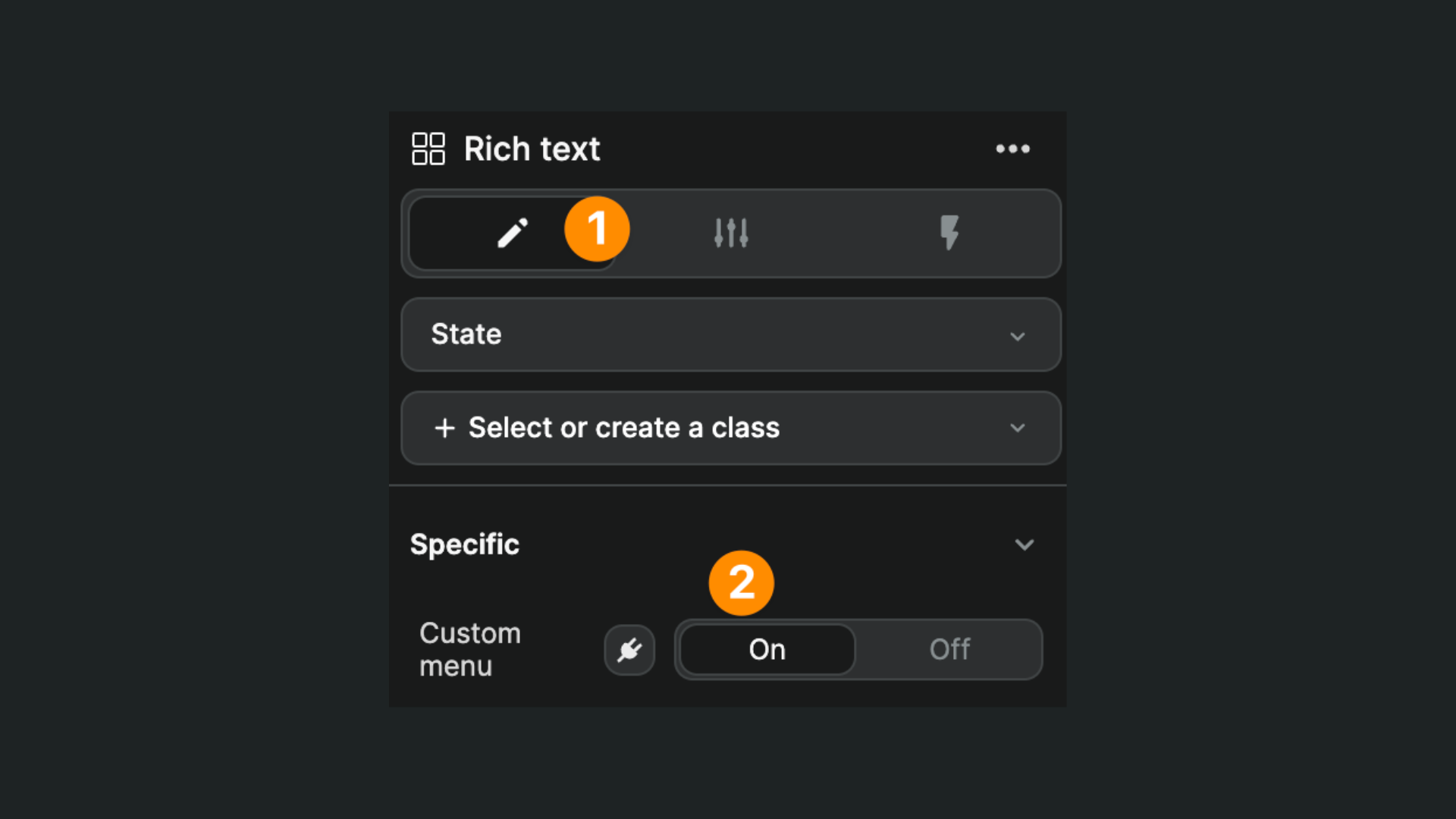

Rich text input custom menu

Toggle on Custom menu in the design settings
Design your custom toolbar in the custom menu container
Add buttons and connect them to rich text actions

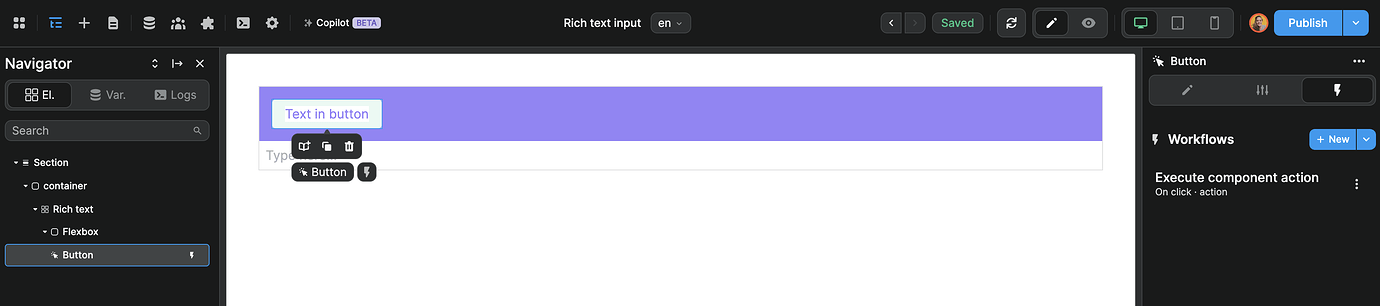

Rich text input custom editing menu

Available Actions

Use the Execute component action workflow action to trigger formatting:

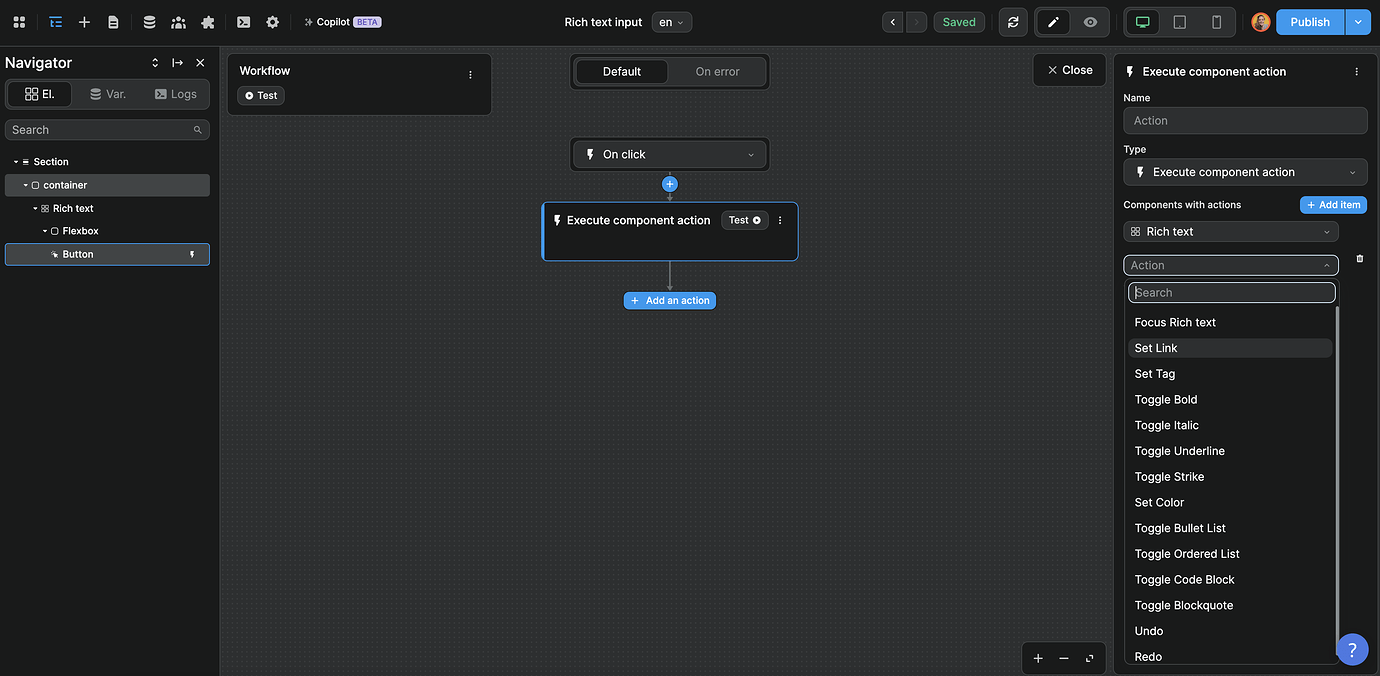

Rich text component actions

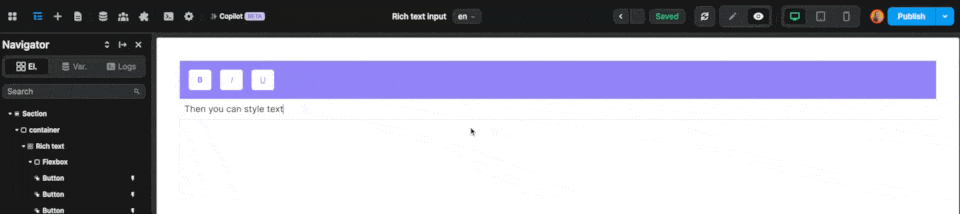

Rich text component actions in action

Saving Content

Create workflows to save rich text content to your backend:

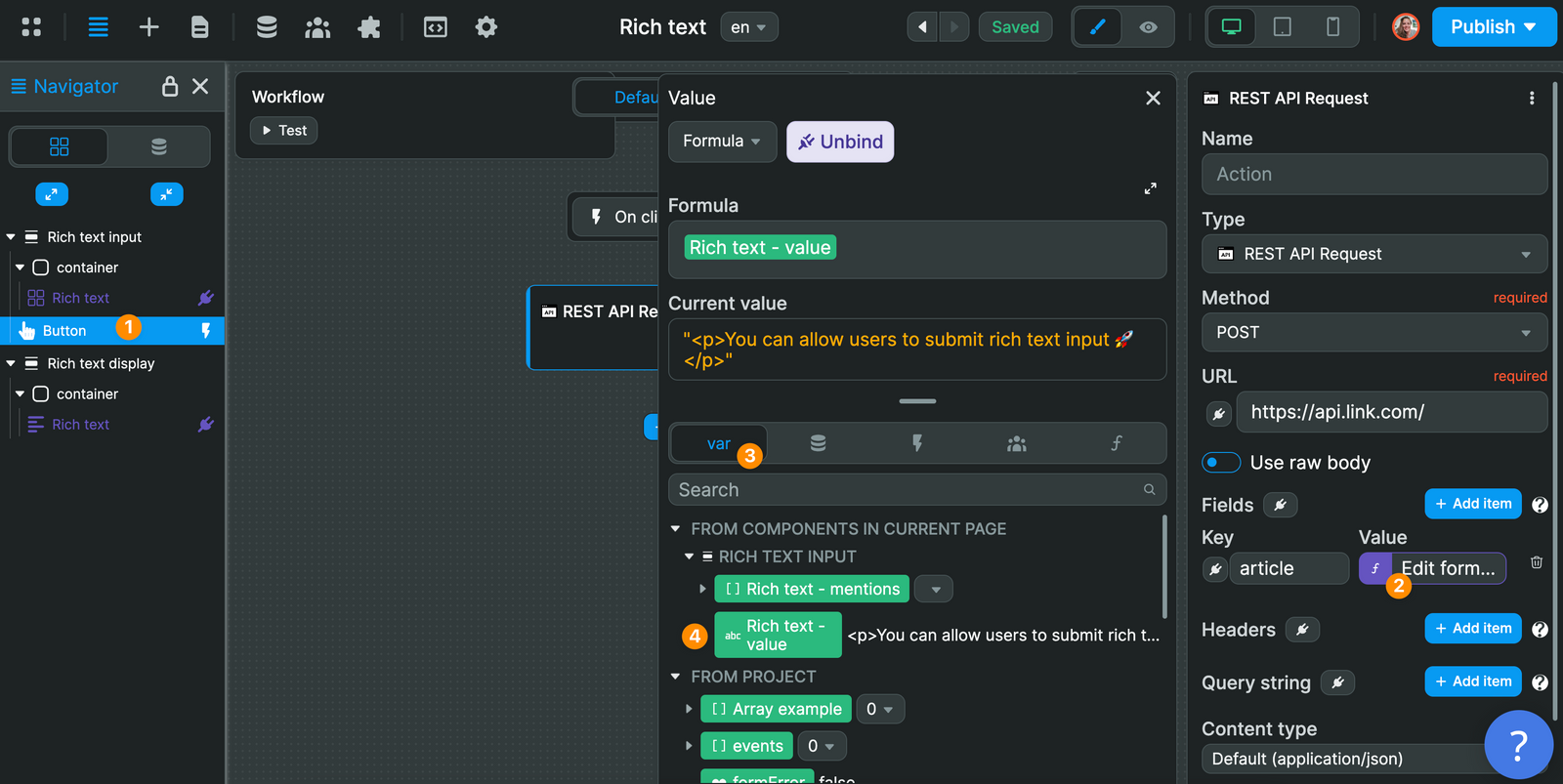

Display rich text variable

Use the Rich text - value variable to access the formatted content and send it to your database or API.

Forking

While the Rich Text Input offers extensive customization options, you can fork it for specialized requirements like custom formatting options or integration with specific editors.

If you are unsure how to fork an element, learn more in the dedicated documentation.

Properties Reference

Settings

Property	Options/Type	Description
`Read only`	boolean	Whether the editor is read-only
`Editable`	boolean	Whether the editor allows editing
`Init value`	text	Initial content for the editor
`Output`	`html` `markdown`	Format of the output content
`Placeholder`	text	Placeholder text when editor is empty
`Autofocus`	boolean	Whether to focus the editor on page load
`Debounce`	boolean	Enable debounced change events
`Delay`	length in `ms`	Debounce delay (1-5000ms)

Mention Settings

Property	Options/Type	Description
`Mentions`	boolean	Enable mention functionality
`Mentions List`	array	Collection of users/items for mentions
`Id property`	path	Field to use as mention ID
`Label property`	path	Field to use as mention display label
`Char trigger`	text	Character that triggers mentions (default: @)
`Allow spaces`	boolean	Whether mentions can include spaces
`Numbers of suggestion`	number	Maximum mention suggestions to show

Property	Options/Type	Description
`Hide menu`	boolean	Hide the default formatting menu
`Wrap menu`	boolean	Allow menu to wrap to multiple lines
`Custom menu`	boolean	Use custom menu instead of default

When not using custom menu, control which tools are available:

Property	Options/Type	Description
`Text type`	`Show` `Hide`	Show/hide heading and paragraph options
`Bold`	`Show` `Hide`	Show/hide bold formatting
`Italic`	`Show` `Hide`	Show/hide italic formatting
`Underline`	`Show` `Hide`	Show/hide underline formatting
`Strike`	`Show` `Hide`	Show/hide strikethrough formatting
`Text color`	`Show` `Hide`	Show/hide text color picker
`Bullet list`	`Show` `Hide`	Show/hide bullet list option
`Ordered list`	`Show` `Hide`	Show/hide numbered list option
`Check list`	`Show` `Hide`	Show/hide task list option
`Link`	`Show` `Hide`	Show/hide link insertion
`Image`	`Show` `Hide`	Show/hide image insertion
`Code block`	`Show` `Hide`	Show/hide code block option
`Quote`	`Show` `Hide`	Show/hide blockquote option
`Table`	`Show` `Hide`	Show/hide table insertion
`Inline math`	`Show` `Hide`	Show/hide inline math (LaTeX)
`Block math`	`Show` `Hide`	Show/hide block math (LaTeX)
`Undo`	`Show` `Hide`	Show/hide undo button
`Redo`	`Show` `Hide`	Show/hide redo button

Styling

Property	Description
Menu color	Color of the default formatting menu

Text Elements

Each text element can be styled independently:

Headings (H1-H6)

Property	Description
Font Size	Size of the heading text
Font Family	Font family for headings
Font Weight	Weight/boldness of heading text
Text Align	Alignment of heading text
Color	Color of heading text
Line Height	Line spacing for headings
Margin Top	Top margin for headings
Margin Bottom	Bottom margin for headings

Paragraphs (P)

Property	Description
Font Size	Size of paragraph text
Font Family	Font family for paragraphs
Font Weight	Weight of paragraph text
Text Align	Alignment of paragraph text
Color	Color of paragraph text
Line Height	Line spacing for paragraphs
Margin Top	Top margin for paragraphs
Margin Bottom	Bottom margin for paragraphs

Links (A)

Property	Description
Font Size	Size of link text
Font Family	Font family for links
Color	Color of link text
Underline	Whether links are underlined

Mentions

Property	Description
Font Size	Size of mention text
Font Family	Font family for mentions
Font Weight	Weight of mention text
Color	Color of mention text
Border	Border width for mention badges
Border Radius	Roundness of mention badges

Blockquotes

Property	Description
Text Color	Color of blockquote text
Blockquote Color	Color of blockquote border
Margin Top	Top margin for blockquotes
Margin Bottom	Bottom margin for blockquotes

Code Blocks

Property	Description
Font Size	Size of code text
Text Color	Color of code text
Blockquote Color	Background color of code blocks
Border Radius	Roundness of code block corners
Padding X	Horizontal padding inside code blocks
Padding Y	Vertical padding inside code blocks

Images

Property	Description
Max Width	Maximum width of images
Max Height	Maximum height of images
Inline	Whether images display inline with text

Checkboxes

Property	Description
Accent Color	Color of checkbox elements

Tables

Property	Description
Border Color	Color of table borders
Border Width	Width of table borders
Header Background Color	Background color of table headers
Header Text Color	Text color of table headers
Pair Row Background Color	Background color of even rows
Impair Row Background Color	Background color of odd rows
Cell Text Color	Text color of table cells
Cell Padding Y	Vertical padding in table cells
Cell Padding X	Horizontal padding in table cells

Slots

Slot	Description
Custom Menu Element	Container for custom menu when `Custom menu` is enabled

Component Actions

Action	Description	Parameters
Focus Rich text	Focus the editor	None
Set Link	Add a link to selected text	URL (Text)
Set Image	Insert an image	Source (Text), Alt (Text), Title (Text)
Set Tag	Change text tag	Tag (select: p, h1, h2, h3, h4, h5, h6)
Toggle Bold	Toggle bold formatting	None
Toggle Italic	Toggle italic formatting	None
Toggle Underline	Toggle underline formatting	None
Toggle Strike	Toggle strikethrough formatting	None
Set Text Align	Set text alignment	Alignment (select: left, center, right, justify)
Set Color	Set text color	Color (color)
Toggle Bullet List	Toggle bullet list	None
Toggle Ordered List	Toggle numbered list	None
Toggle Check List	Toggle task list	None
Toggle Code Block	Toggle code block	None
Toggle Blockquote	Toggle blockquote	None
Insert Inline Math	Insert inline LaTeX	Inline LaTeX Expression (Text)
Insert Block Math	Insert block LaTeX	Block LaTeX Expression (Text)
Undo	Undo last action	None
Redo	Redo last action	None
Insert Table	Insert a table	None
Insert Row	Insert table row	Position (select: before, after)
Insert Column	Insert table column	Position (select: before, after)
Delete Row	Delete table row	None
Delete Column	Delete table column	None
Delete Table	Delete entire table	None

Event Triggers

Event	Description	Payload
On change	Triggered when content changes	`{ value: string }`
On init value change	Triggered when initial value changes	`{ value: string }`
On mention click	Triggered when a mention is clicked	`{ mention: { id: string, label: string } }`
On focus	Triggered when editor receives focus	`{ value: string }`
On blur	Triggered when editor loses focus	`{ value: string }`

Example Event Payloads

On change

javascript

{
  value: "<p>Hello <strong>world</strong>!</p>"
}

On mention click

javascript

{
  mention: {
    id: "user123",
    label: "John Smith"
  }
}

On focus/blur

javascript

{
  value: "<p>Current editor content</p>"
}

Exposed Variables

The rich text input exposes the following variables for use in your application:

Variable	Type	Description
`value`	string	Current HTML or Markdown content of the editor
`mentions`	array	List of mentions found in the content
`states`	object	Current formatting states of the editor

Example Variable Values

value

javascript

"<p>Hello <strong>world</strong>! Check out this <a href='https://example.com'>link</a>.</p>"

mentions

javascript

[
  {
    id: "user123",
    label: "John Smith"
  },
  {
    id: "user456",
    label: "Jane Doe"
  }
]

states

javascript

{
  textType: "paragraph",
  textColor: "#000000",
  bold: false,
  italic: true,
  underline: false,
  strike: false,
  bulletList: false,
  orderedList: false,
  checkList: false,
  link: false,
  codeBlock: false,
  blockquote: false,
  textAlign: "left",
  table: false
}

Variable Usage

Use the value variable to save content to your backend, the mentions array for notification systems, and the states object to create custom toolbar indicators.

Rich Text Input

Features

Getting Started

Using AI

Manual Setup

Working With Content

Content Creation

Markdown Support

Output Formats

Math Support

Mentions System

Setting Up Mentions

Custom Menu

Enabling Custom Menu

Available Actions

Saving Content

Forking

Properties Reference

Settings

Mention Settings

Menu Configuration

Styling

Menu

Text Elements

Slots

Component Actions

Event Triggers

Example Event Payloads

On change

On mention click

On focus/blur

Exposed Variables

Example Variable Values

value

mentions

states

Rich Text Input ​

Features ​

Getting Started ​

Using AI ​

Manual Setup ​

Working With Content ​

Content Creation ​

Markdown Support ​

Output Formats ​

Math Support ​

Mentions System ​

Setting Up Mentions ​

Custom Menu ​

Enabling Custom Menu ​

Available Actions ​

Saving Content ​

Forking ​

Properties Reference ​

Settings ​

Mention Settings ​

Menu Configuration ​

Toolbar Options ​

Styling ​

Menu ​

Text Elements ​

Slots ​

Component Actions ​

Event Triggers ​

Example Event Payloads ​

On change ​

On mention click ​

On focus/blur ​

Exposed Variables ​

Example Variable Values ​

value ​

mentions ​

states ​

Rich Text Input

Features

Getting Started

Using AI

Manual Setup

Working With Content

Content Creation

Markdown Support

Output Formats

Math Support

Mentions System

Setting Up Mentions

Custom Menu

Enabling Custom Menu

Available Actions

Saving Content

Forking

Properties Reference

Settings

Mention Settings

Menu Configuration

Toolbar Options

Styling

Menu

Text Elements

Slots

Component Actions

Event Triggers

Example Event Payloads

On change

On mention click

On focus/blur

Exposed Variables

Example Variable Values

value

mentions

states
